Futronic FS82
at Biometric Supply,
a subsidiary of Neurotechnology.

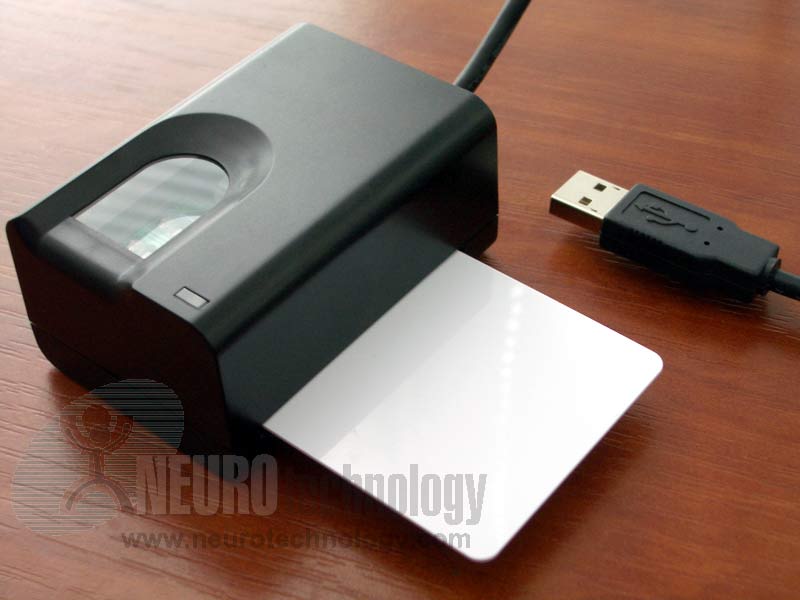

General view
Click to zoom

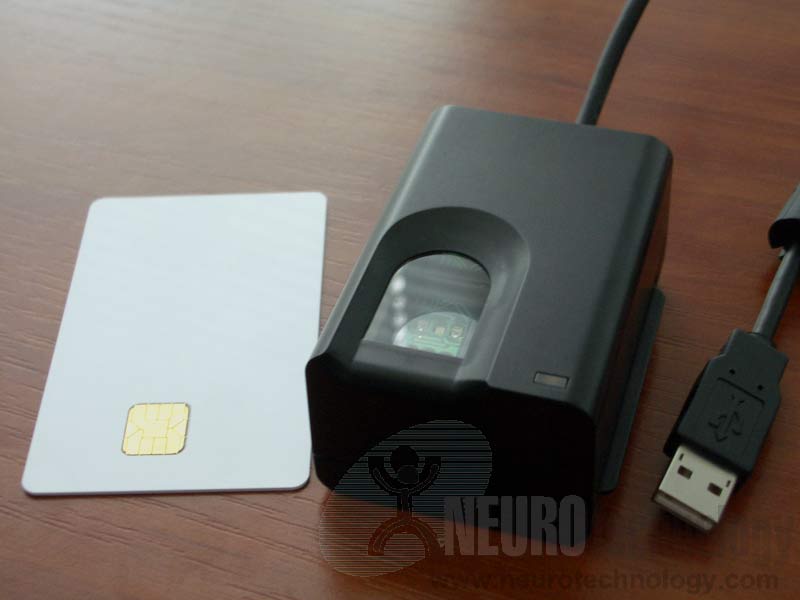

Smart card removed
Click to zoom
Close-up on sensor
Click to zoom
Raw fingerprint image
Click to zoom
Futronic FS82 is an optical USB 2.0 fingerprint scanner that also has an ISO/IEC 7816 compliant smart card reader. Technically the device is the Futronic FS80 scanner with smart card reader added.
The device allows to use fingerprint and smart card readers together for two-factor authentication, or separately. The smart card reader in FS82 can handle any ISO 7816 compatible smart card and can be used as stand-alone smart card reader.
Scanner's manufacturer specifies that FS82 is able to perform live finger detection and reject fake fingers made from silicone rubber, play-doh or other materials. The scanner is able to adapt to fingerprint image quality (wet, dry or blurred fingers) by adjusting illumination intensity.
Support modules for this scanner are included in:
- MegaMatcher 13.1 SDK;
- MegaMatcher On Card 13.1 SDK – can be used to integrate storage and verification of fingerprint templates on a smart card.;
- VeriFinger 13.1 SDK;
- Free Fingerprint Verification SDK.
Specifications
| General | |
|---|---|
| Device name | Futronic FS82 USB2.0 Fingerprint Smart Card Reader |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| Device size | 50 x 73 x 35 mm (2.0" x 2.9" x 1.4") |
| Device weight | 160 grams (0.4 lbs) |
| Operating temperature | -10°C ~ +55°C |
| Fingerprint reader | |
| Supported OS (*) | Microsoft Windows, Linux (x86-64), macOS, Android |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint image size | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Smart card reader | |
| Supported OS (*) | Microsoft Windows |
| Standard compliancy | ISO/IEC 7816 |
| Accepted card voltage | 1.8V, 3V, 5V |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Where to order this device?
Buy FS82 at Biometric Supply – a subsidiary of Neurotechnology.
Other Futronic scanners
Neurotechnology SDKs also include support modules for these Futronic scanners:
- eFAM (FS84) – an embedded fingerprint scanner solution
- FS10 – a single finger scanner with 1" x 1" platen and PIV / FIPS 201 certification
- FS26 – a single finger scanner with MIFARE card reader/writer
- FS26EU – a single finger scanner with PIV / FIPS 201 certification and embedded smart card reader (ISO7816 contact and MIFARE cards supported)
- FS28 – a single finger scanner with bluetooth connection
- FS50 – a two finger scanner with PIV / FIPS 201 certification
- FS60 – a four finger scanner with FBI Appendix F certification
- FS64 – a four finger / rolled fingerprint scanner with FBI Appendix F certification
- FS80 – basic Futronic FS80-series scanner
- FS88 – an enhanced version of FS80 with PIV / FIPS 201 certification
- FS90 – a compact scanner most suitable for using with notebook PCs, handheld devices and mobile phones
