Futronic FS80 / FS80H

Buy FS80H
at Biometric Supply,

a subsidiary of Neurotechnology.

FS80 reader
Futronic FS80 fingerprint scanner, general view
Click to zoom


FS80H reader
Futronic FS80H fingerprint scanner, general view
Click to zoom

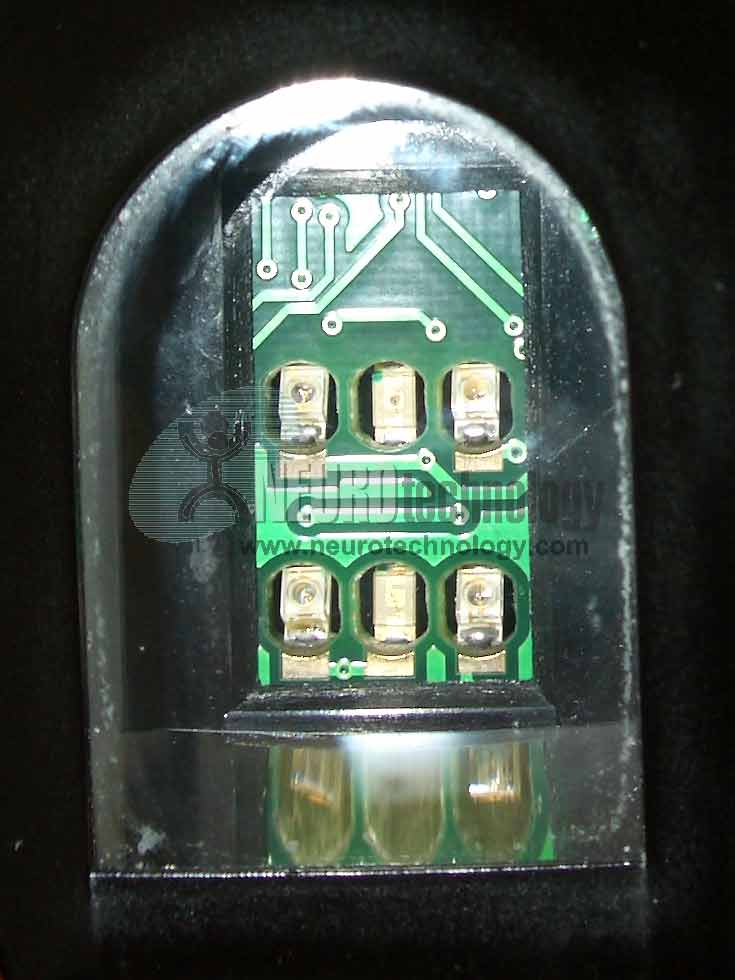

Close-up on sensor
Close-up on Futronic FS80 fingerprint sensor
Click to zoom


Raw fingerprint image
Raw fingerprint image from Futronic FS80 scanner
Click to zoom

Futronic's FS80 is a USB 2.0 fingerprint scanner based on CMOS image sensor technology. Infra-red LEDs are used to illuminate a finger during scanning.

Scanner's manufacturer specifies that FS80 is able to perform live finger detection and reject fake fingers made from silicone rubber, play-doh or other materials. The scanner is able to adapt to fingerprint image quality (wet, dry or blurred fingers) by adjusting illumination intensity.

Futronic FS80H is an updated model of the original FS80.

Support modules for this scanner are included in:

Specifications

Scanner Name FS88 FS88H
Manufacturer Futronic Technology Co. Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows,
Linux (x86-64),
macOS,
Android
Resolution 500 ppi
Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9")
Fingerprint image size 320 x 480 pixels
Sensor type Optical, CMOS
Illumination Infrared LEDs
Device size 45 x 63 x 26 mm (1.8" x 2.5" x 1.0")
Device weight 120 grams (4.2 oz)
Operating temperature -10°C ~ +55°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Neurotechnology Solution Partners use this scanner in

Futronic FS80 scanners used in these systems, created by Neurotechnology Solution Partners:

  • Parent Pager system – an access & attendance control system created by CNG Technologies.
  • Biostore – a generic biometric identification system created by Biostore Limited.
  • Anaxee-Neurotech Attendance – an access and attendance control system developed by Anaxee Technologies Pvt. Ltd.
  • RobotID – a generic biometric identification system created by Computer ID.
  • TouchClock – an attendance control system created by Computer ID.
  • TouchAccess – an access control system created by Computer ID.

Where to order this device?

Buy FS80H at Biometric Supply – a subsidiary of Neurotechnology.

Other Futronic scanners

Neurotechnology SDKs also include support modules for these Futronic scanners:

  • eFAM (FS84) – an embedded fingerprint scanner solution
  • FS10 – a single finger scanner with 1" x 1" platen and PIV / FIPS 201 certification
  • FS26 – a single finger scanner with MIFARE card reader/writer
  • FS26EU – a single finger scanner with PIV / FIPS 201 certification and embedded smart card reader (ISO7816 contact and MIFARE cards supported)
  • FS28 – a single finger scanner with bluetooth connection
  • FS50 – a two finger scanner with PIV / FIPS 201 certification
  • FS60 – a four finger scanner with FBI Appendix F certification
  • FS64 – a four finger / rolled fingerprint scanner with FBI Appendix F certification
  • FS82 – a version of FS80 with embedded smart card reader
  • FS88H – an enhanced version of FS80H with PIV / FIPS 201 certification
  • FS90 – a compact scanner most suitable for using with notebook PCs, handheld devices and mobile phones
