Futronic eFAM (FS84)

Front view
Futronic eFAM (FS84) fingerprint scanner, front view
Click to zoom

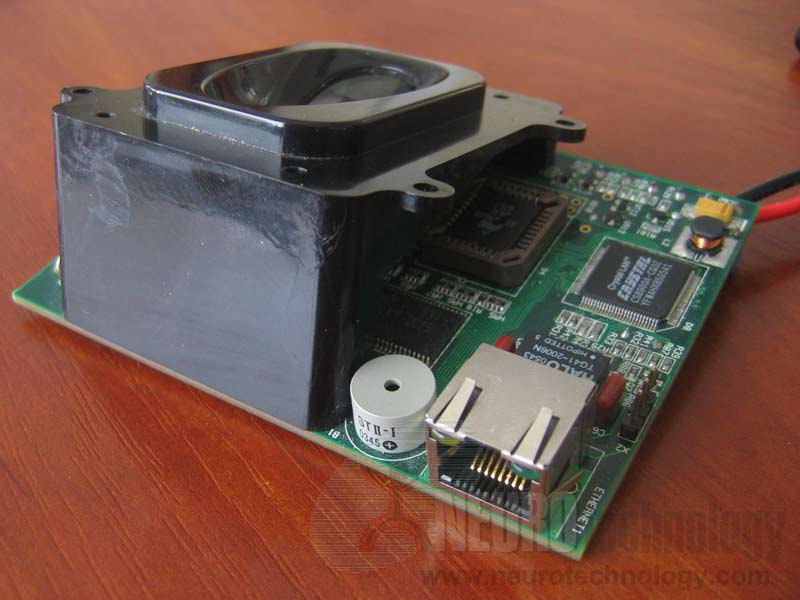

Back view
Futronic eFAM (FS84) fingerprint scanner, back view
Click to zoom

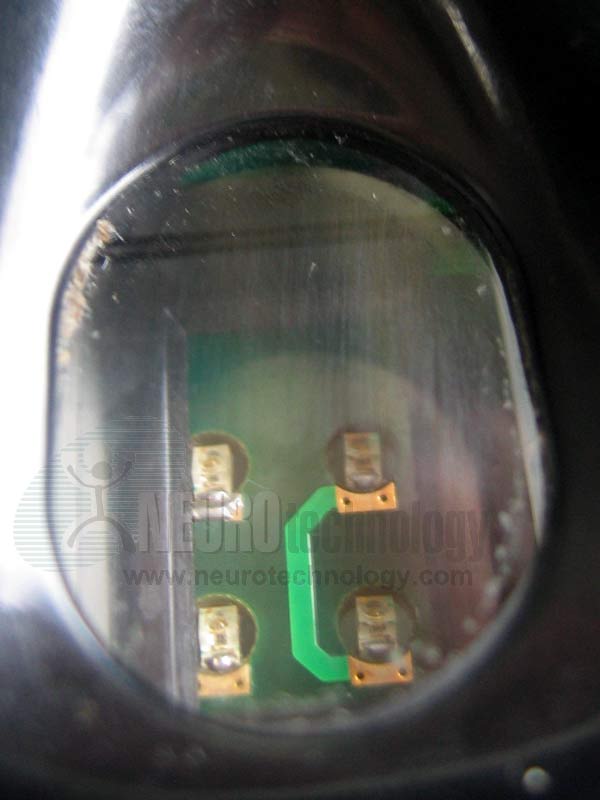

Close-up on sensor
Close-up on Futronic eFAM (FS84) fingerprint sensor
Click to zoom

Futronic FS84 is an ethernet Fingerprint Authentication Module (eFAM) suitable for embedded, regular or remote applications. The module can be controlled via standard Ethernet interface by any host system or via serial interface.

1 output channel (for external relay control) and 2 input channels (for door sensor and switch) are available for external device control. Electric lock or other electric device can be activated by eFAM using these output control signals.

Support modules for this device are included in MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK, VeriFinger 13.1 SDK and Free Fingerprint Verification SDK.

Find FS84 ethernet Fingerprint Authentication Module (eFAM)
at Biometric Supply, a subsidiary of Neurotechnology.

Specifications

Scanner Name Futronic FS84 ethernet Fingerprint Authentication Module (eFAM)
Manufacturer Futronic Technology Co. Ltd.
Connection Ethernet or Serial
Supported OS (*) Microsoft Windows,
Android,
Linux (x86-64 and ARM)
Resolution 500 ppi
Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9")
Fingerprint image size 320 x 480 pixels
Sensor type Optical, CMOS
Illumination Infrared LEDs
Device size 106 x 76 x 41 mm (4.2" x 3.0" x 1.6")
Device weight 200 grams (0.4 lbs.)
Operating temperature -10°C ~ +55°C
Operating humidity Scanning window is waterproof

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Futronic scanners

Neurotechnology SDKs also include support modules for these Futronic scanners:

  • FS10 – a single finger scanner with 1" x 1" platen and PIV / FIPS 201 certification
  • FS26 – a single finger scanner with MIFARE card reader/writer
  • FS26EU – a single finger scanner with PIV / FIPS 201 certification and embedded smart card reader (ISO7816 contact and MIFARE cards supported)
  • FS28 – a single finger scanner with bluetooth connection
  • FS50 – a two finger scanner with PIV / FIPS 201 certification
  • FS60 – a four finger scanner with FBI Appendix F certification
  • FS64 – a four finger / rolled fingerprint scanner with FBI Appendix F certification
  • FS80 – basic Futronic FS80-series scanner
  • FS82 – a version of FS80 with embedded smart card reader
  • FS88 – an enhanced version of FS80 with PIV / FIPS 201 certification
  • FS90 – a compact scanner most suitable for using with notebook PCs, handheld devices and mobile phones
