Futronic FS28

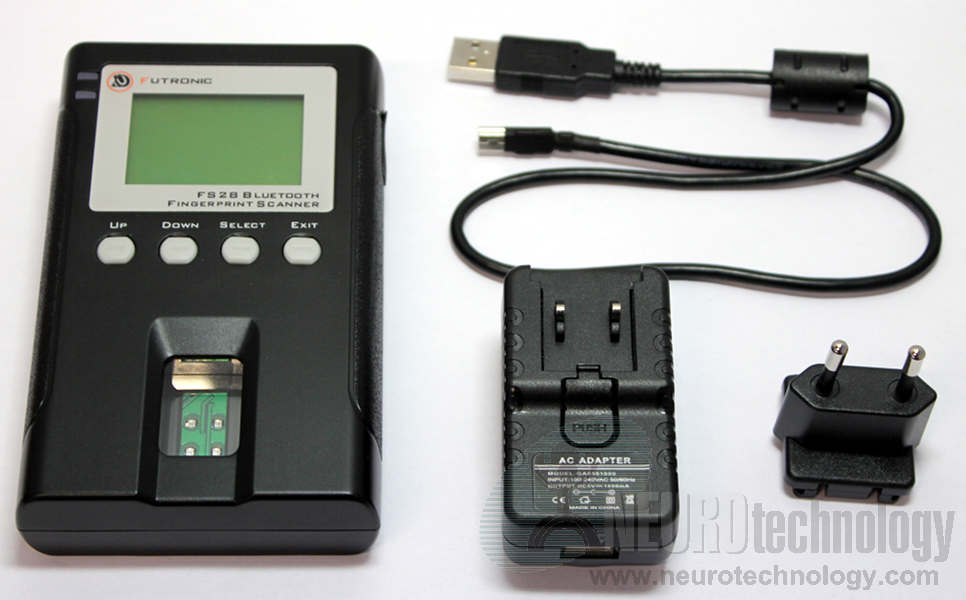

Futronic FS28 is a fingerprint reader with Bluetooth connection. The FS28 has an optical fingerprint sensor and produces fingerprint images which are compliant with PIV-071006 Image Quality Specification for Single Finger Reader.
The device is powered by a rechargeable battery and can operate as a mobile fingerprint reader without any wired connection to host device. FS28 includes 128 x 64 pixels LCD screen for showing required information.
Support modules for this scanner are included in:
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Scanner Name | Futronic FS28 FIPS201/PIV Bluetooth Fingerprint Scanner |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | Bluetooth 2.1, class 2, 10 meter communication range USB 2.0 |
| Supported OS on host device(*) | Android |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint image size | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device power | Li-ion rechargeable battery 3.7 V, 1,500 mAh |
| Device size | 130 x 82 x 30 mm (5.1" x 3.2" x 1.2") |
| Device weight | 400 grams (0.9 lbs.) |
| Operating temperature | -10°C ~ +55°C |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Futronic scanners
Neurotechnology SDKs also include support modules for these Futronic scanners:
- eFAM (FS84) – an embedded fingerprint scanner solution
- FS10 – a single finger scanner with 1" x 1" platen and PIV / FIPS 201 certification
- FS26 – a single finger scanner with MIFARE card reader/writer
- FS26EU – a single finger scanner with PIV / FIPS 201 certification and embedded smart card reader (ISO7816 contact and MIFARE cards supported)
- FS50 – a two finger scanner with PIV / FIPS 201 certification
- FS60 – a four finger scanner with FBI Appendix F certification
- FS64 – a four finger / rolled fingerprint scanner with FBI Appendix F certification
- FS80 – basic Futronic FS80-series scanner
- FS82 – a version of FS80 with embedded smart card reader
- FS88 – an enhanced version of FS80 with PIV / FIPS 201 certification
- FS90 – a compact scanner most suitable for using with notebook PCs, handheld devices and mobile phones
