Futronic FS26EU

General view

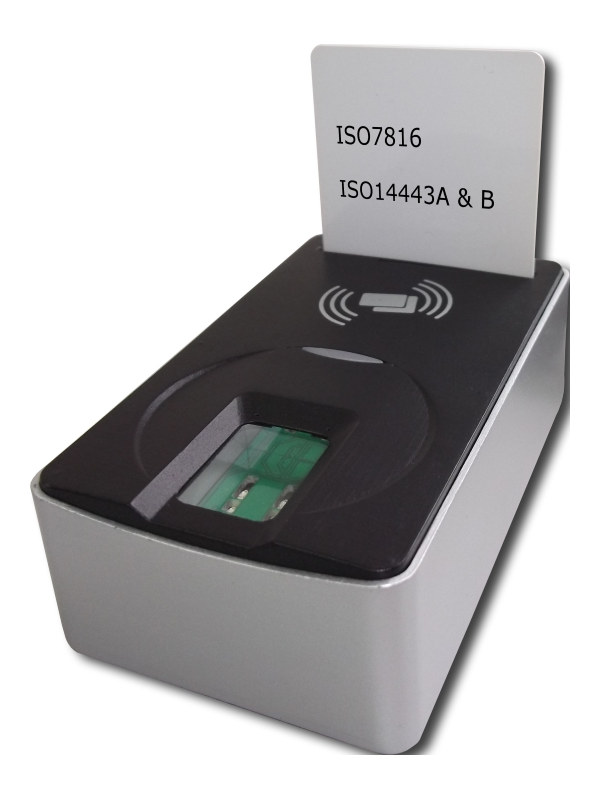

Futronic FS26EU fingerprint and smart card reader, general view
Click to zoom

Futronic FS26EU is a device which combines an optical fingerprint scanner with embedded smart card readers (contact and contactless cards supported). The device is intended for using in two-factor authentication scenario, when a person's fingerprint is compared with a fingerprint template stored on a card.

FS26EU is FIPS 201 / PIV compliant and uses the same fingerprint sensor as the FS88. The scanner is able to adapt to fingerprint image quality (wet, dry or blurred fingers) by adjusting illumination intensity.

The smart card reader module is able to read ISO7816 contact cards, as well as ISO14443 and Mifare contactless cards.

Support modules for the fingerprint reader are included in:


Device name FS26EU USB2.0 Dual Card Combo Reader
Manufacturer Futronic Technology Co. Ltd.
Connection USB 2.0
Device size 120 x 72 x 42 mm (4.7" x 2.8" x 1.7")
Device weight 250 grams (8.8 oz)
Operating temperature -10°C ~ +55°C
Fingerprint reader
Supported OS (*) Microsoft Windows,
Linux (x86-64),
Resolution 500 ppi
Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9")
Fingerprint image size 320 x 480 pixels
Sensor type Optical, CMOS
Illumination Infrared LEDs
Contact smart card reader
Standard compliancy ISO/IEC 7816 Class A, B and C
Accepted card voltage 1.8V, 3V, 5V
Contactless card reader
Standard compliancy ISO14443 A/B and MIFARE classic
Supported cards 1 KB and 4 KB MIFARE cards

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.


Other Futronic scanners

Neurotechnology SDKs also include support modules for these Futronic scanners:

  • eFAM (FS84) – an embedded fingerprint scanner solution
  • FS10 – a single finger scanner with 1" x 1" platen and PIV / FIPS 201 certification
  • FS26 – a single finger scanner with MIFARE card reader/writer
  • FS28 – a single finger scanner with bluetooth connection
  • FS50 – a two finger scanner with PIV / FIPS 201 certification
  • FS60 – a four finger scanner with FBI Appendix F certification
  • FS64 – a four finger / rolled fingerprint scanner with FBI Appendix F certification
  • FS80 – basic Futronic FS80-series scanner
  • FS82 – a version of FS80 with embedded smart card reader
  • FS88 – an enhanced version of FS80 with PIV / FIPS 201 certification
  • FS90 – a compact scanner most suitable for using with notebook PCs, handheld devices and mobile phones
