ZKSoftware ZK8000

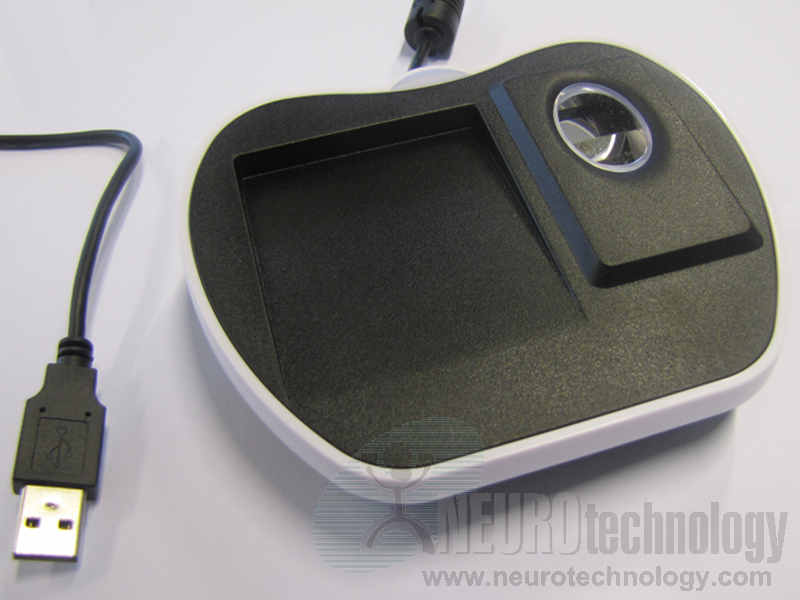

ZK8000 is a device that combines optical fingerprint scanner and contactless MIFARE card reader / writer.
The manufacturer specifies that the fingerprint sensor is made of hard material and also protected by a special membrane. The sensor is able to scan dry or rough fingers.
Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK and VeriFinger 13.0 SDK.
Specifications
| General | |
|---|---|
| Device Name | ZK8000 |
| Manufacturer | ZKSoftware |
| Connection | USB 2.0 |
| Device size | 125 x 102 x 34 mm (4.9" x 4.0" x 1.3") |
| Operating temperature | 0°C ~ +40°C |
| Operating humidity | 20% - 80% non-condensing |
| Fingerprint reader | |
| Supported OS (*) | Microsoft Windows (32 bit only) |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 15 x 18 mm (0.6" x 0.7") |
| Sensor type | Optical |
| Contactless smart card reader / writer | |
| Operating frequency | 13.56 MHz |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
