L-1 DFR 2080

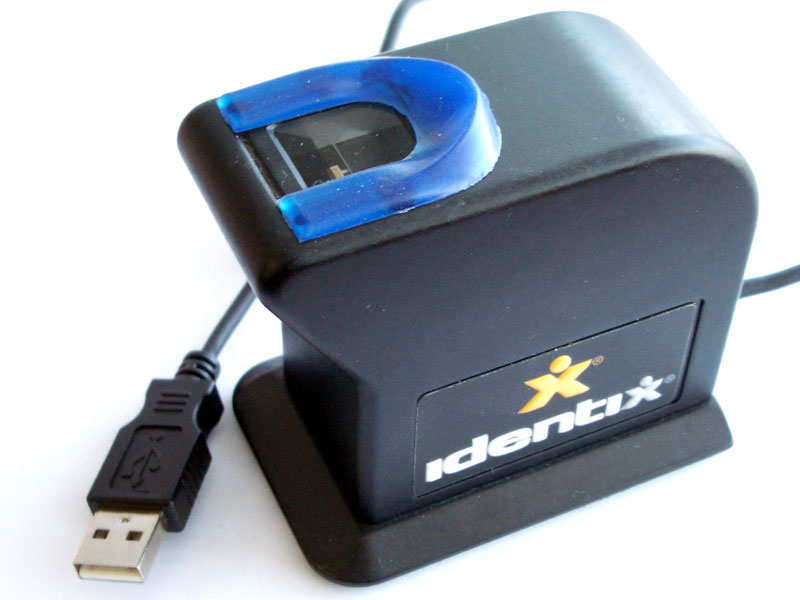

DFR 2080 Fingerprint Reader is an optical USB 1.1 fingerprint scanner that is designed for high traffic applications.
Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK and VeriFinger 13.0 SDK.
Specifications
| Scanner Name | DFR 2080 Fingerprint Reader |
| Manufacturer | L-1 Identity Solutions, Inc. |
| Connection | USB 1.1 |
| Supported OS (*) | Microsoft Windows (32 bit only) |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 15 x 15 mm (0.6" x 0.6") |
| Fingerprint image size | 248 x 292 pixels |
| Sensor type | Optical |
| Device size | 76 x 38 x 83 mm (3.0" x 1.5" x 3.3") |
| Device weight | 410 grams (0.9 lbs.) |
| Operating temperature | 0°C ~ +40°C |
| Operating humidity | 0-90 % (non-condensing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other L-1 scanners
Neurotechnology SDKs also include support modules for these L-1 scanners:
