L-1 DFR 2300

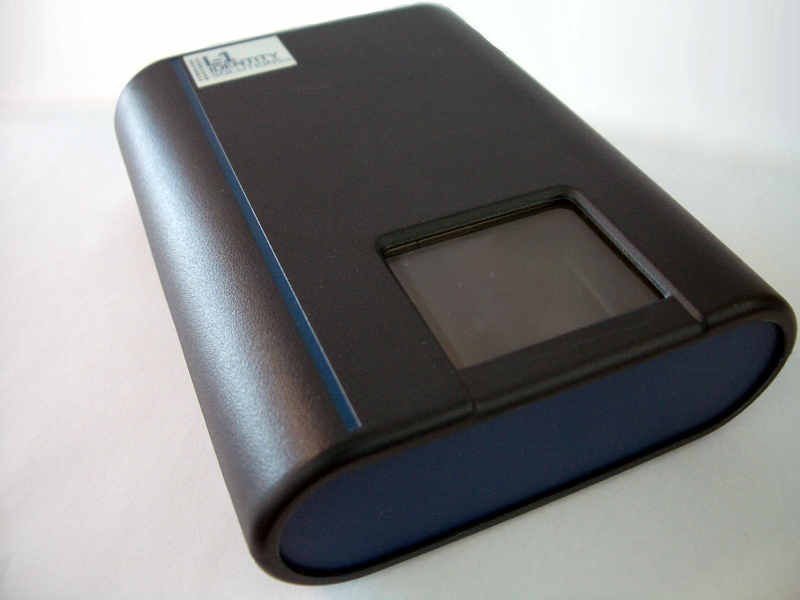

The DFR 2300 Fingerprint Reader from L-1 Identity Solutions is an optical USB 2.0 fingerprint scanner.
The manufacturer specifies that the device meets FBI IQS PIV specifications.
Scanner's compact design, ruggedized fingerprint sensor and USB power make it suitable for using in mobile applications.
Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 2025.1 SDK, MegaMatcher On Card 2025.1 SDK and VeriFinger 2025.1 SDK.
Specifications
| Scanner Name | DFR 2300 Finger Reader |
| Manufacturer | L-1 Identity Solutions, Inc. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows; the 64 bit OS support is limited to 32 bit applications only |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 38 x 31 mm (1.5" x 1.2") |
| Sensor type | Optical |
| Illumination | Monochromatic LEDs |
| Device size | 38 x 107 x 14 mm (1.5" x 4.2" x 5.5") |
| Device weight | 200 grams (7.1 oz) |
| Operating temperature | 5°C ~ +40°C |
| Operating humidity | 10-90 % (non-condensing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other L-1 scanners
Neurotechnology SDKs also include support modules for these L-1 scanners:
