Cross Match I Scan 2

Buy I Scan 2
at Biometric Supply,

a subsidiary of Neurotechnology.

Cross Match I Scan 2, view on folded device
Click to zoom


Cross Match I Scan 2, view on unfolded device
Click to zoom

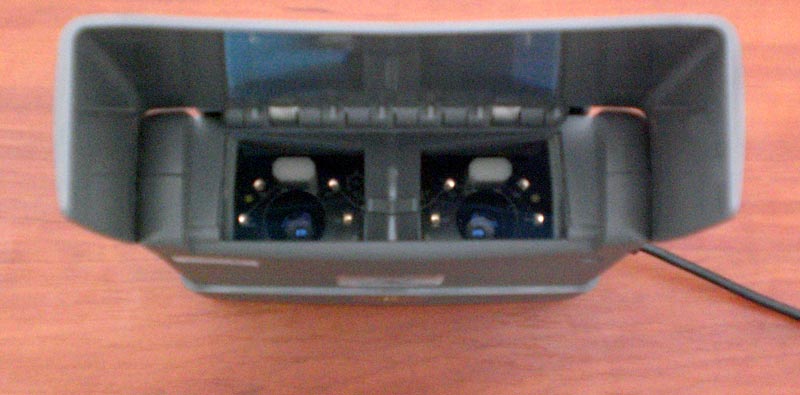

Cross Match I Scan 2, closer view on sensors and visor
Click to zoom


Crossmatch I Scan 2 is a dual iris capture scanner with USB connection. Scanner's design makes it suitable for using in mobile solutions.

The scanner is able to produce ANSI INCITS 379-2004 and ISO/IEC 19794-6 compliant iris images.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriEye 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriEye 13.1 SDK.

Specifications:

Name Crossmatch I Scan 2
Manufacturer HID Global Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows
the 64 bit OS support is limited to 32 bit applications only
Sensors 2 x 1.3 Megapixel cameras
Iris image size 2 images, 480 x 480 pixels each
Eye illumination Near-infrared
Device size (Folded) 152 x 152 x 48 mm (6.0" x 6.0" x 1.9")
Device weight 0.5 kg (1.1 lbs)
Operating temperature range 0°C ~ +49°C
Operating humidity range 10-90 % (non-condensing)

Neurotechnology Solution Partners use this scanner in

HID Crossmatch I Scan 2 scanners used in these systems, created by Neurotechnology Solution Partners:

Other HID Crossmatch iris scanners

Neurotechnology SDKs also include support modules for:
