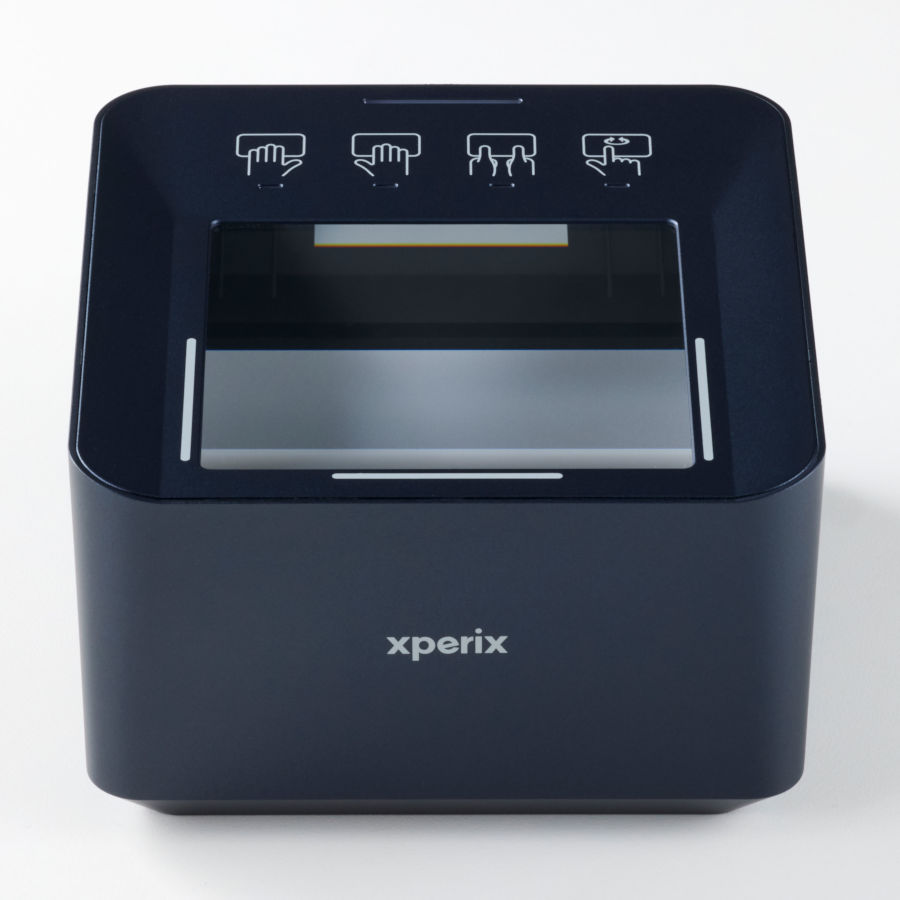

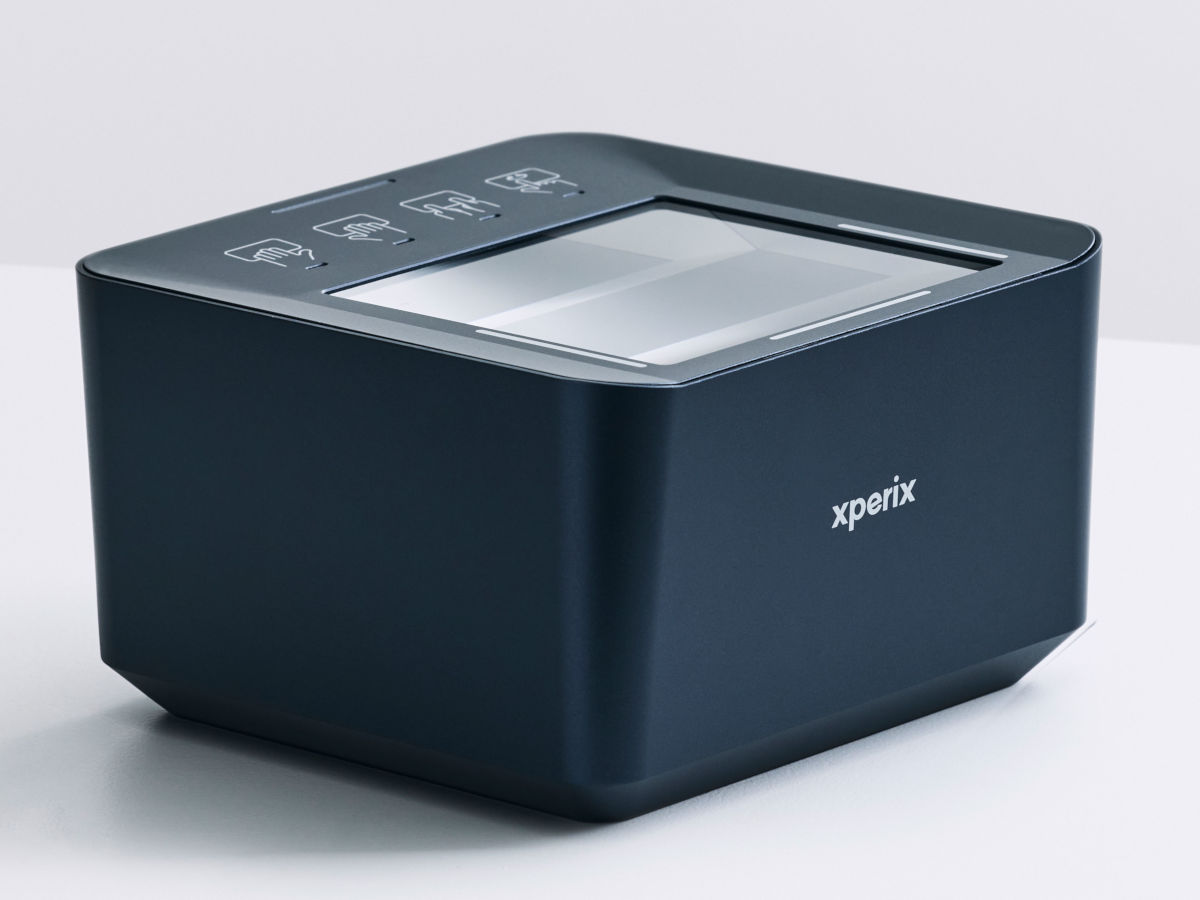

Xperix RealScan SG10
The Xperix RealScan SG10 is a compact optical fingerprint scanner capable of capturing four-finger, two-finger, and rolled fingerprint images. The device is FBI Appendix F and Mobile ID FAP 60 certified, ensuring compliance for civil and criminal identification applications.
The device's IP65-rated housing ensures resistance to dust, moisture, and physical shock. The USB 3.2 interface enables fast data transmission and easy plug-and-play setup.
Automatic capture, slippage detection, and image quality assessment enhance the reliability of fingerprint acquisition. Combining durability and precision, the RealScan SG10 provides consistent performance in both fixed and mobile environments.
Support modules for this scanner are included in MegaMatcher 2025.1 SDK, MegaMatcher On Card 2025.1 SDK and VeriFinger 2025.1 SDK.
Specifications
| Scanner Name | RealScan SG10 |
| Manufacturer | Xperix Inc. |
| Connection | USB 3.2 Gen 1, USB-C |
| Supported OS (*) | Microsoft Windows |
| Resolution | 500 ppi |
| Platen size | 89 x 80 mm (3.5" x 3.1") |
| Image capture area | 81 x 76 mm (3.2" x 3.0") |
| Fingerprint image size |
1600 x 1500 pixels (for 4 finger slaps)
900 x 900 pixels (for 2 finger flats) 800 x 750 pixels (for single finger flat or rolled) |
| Sensor type | Optical |
| Device size | 130 x 138 x 80 mm (5.1" x 5.4" x 3.1") |
| Device weight | 1.35 kg (3.0 lbs) |
| Operating temperature | -10°C ~ +55°C (14°F ~ 131°F) |
| Operating humidity | 10% - 90% (non-condencing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Xperix / Suprema scanners
Neurotechnology SDKs also include support modules for these Xperix and Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 2 and BM-Slim2
- BioMini Slim 3 and BM-Slim3
- BioMini Combo
- BioMini Combo 2
- RealScan-10
- RealScan-G10
- RealScan-D
- RealScan-FC
- RealScan-F
- RealScan S60 and RealScan S60M
- SFR300-S
- SFU300
