Xperix RealScan S60 and RealScan S60M

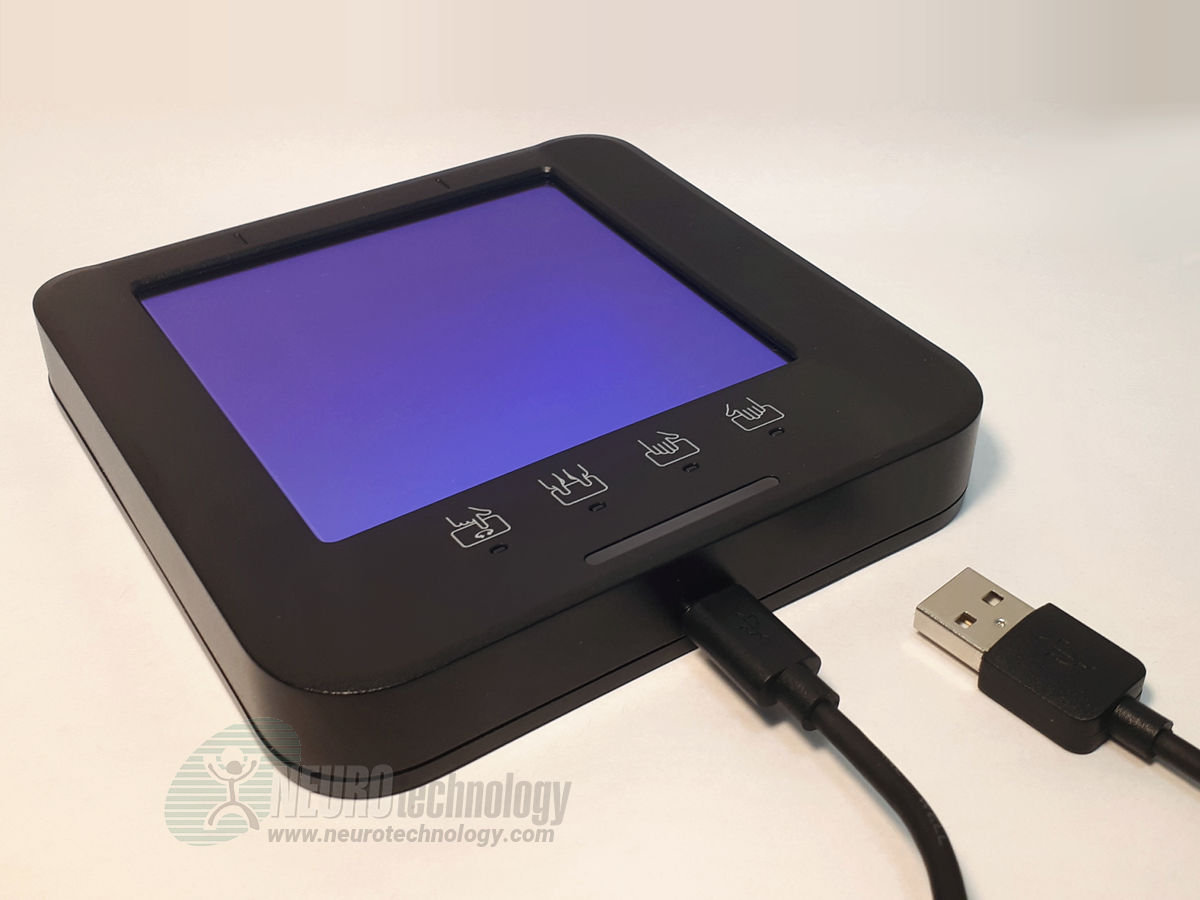

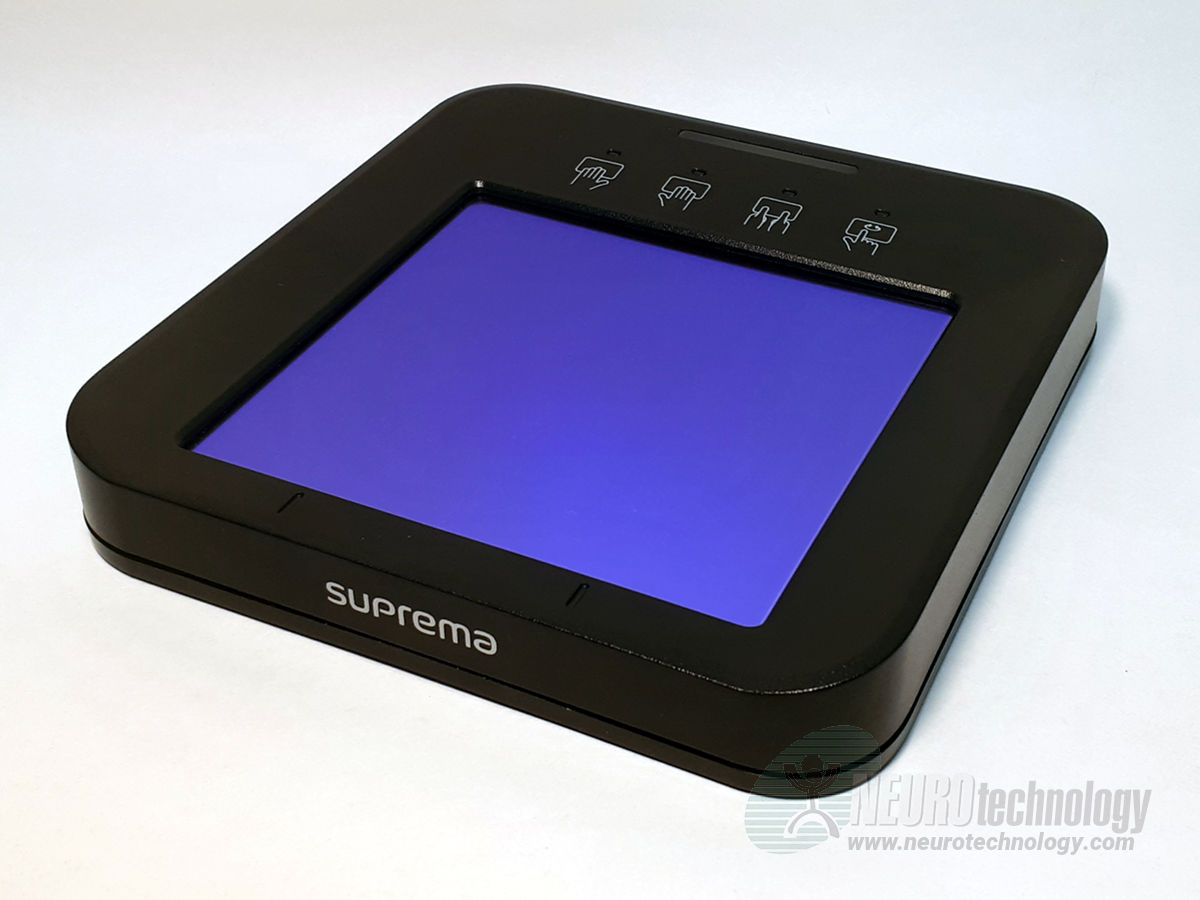

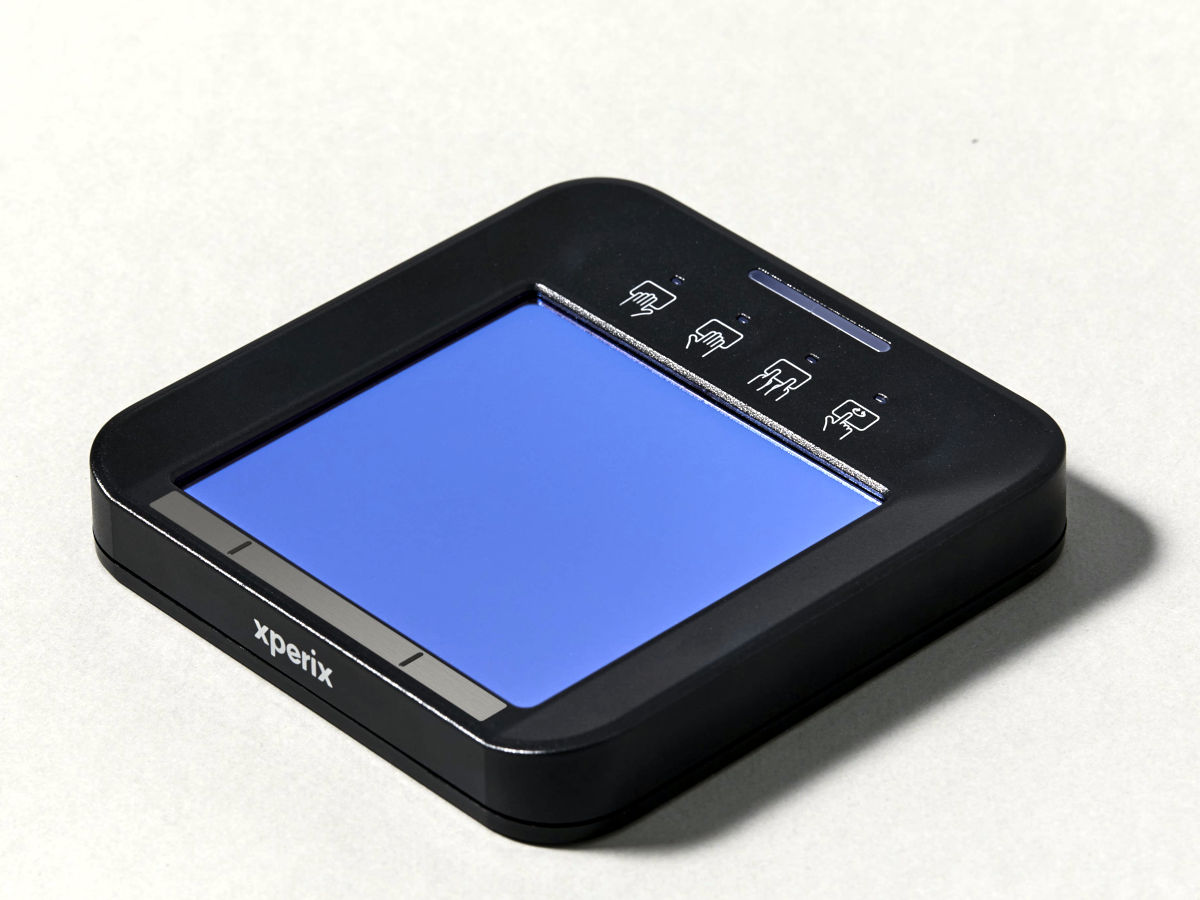

RealScan S60 by Xperix is a compact, thin and lightweight fingerprint scanner designed for capturing all 10 fingerprints as 4+4+2 slaps, as well as single rolled and flat fingerprints. An OEM module, RealScan S60M, is also available.
Both the scanner and the OEM module are certified by the FBI as Appendix F Mobile ID FAP 60 compliant.
The manufacturer specifies that the scanner features IP65 rugged package. The devices are optimized for easy integration into mobile and desktop solutions.
Support modules for these devices are included in MegaMatcher 2025.1 SDK, MegaMatcher On Card 2025.1 SDK and VeriFinger 2025.1 SDK.
at Biometric Supply, a subsidiary of Neurotechnology.

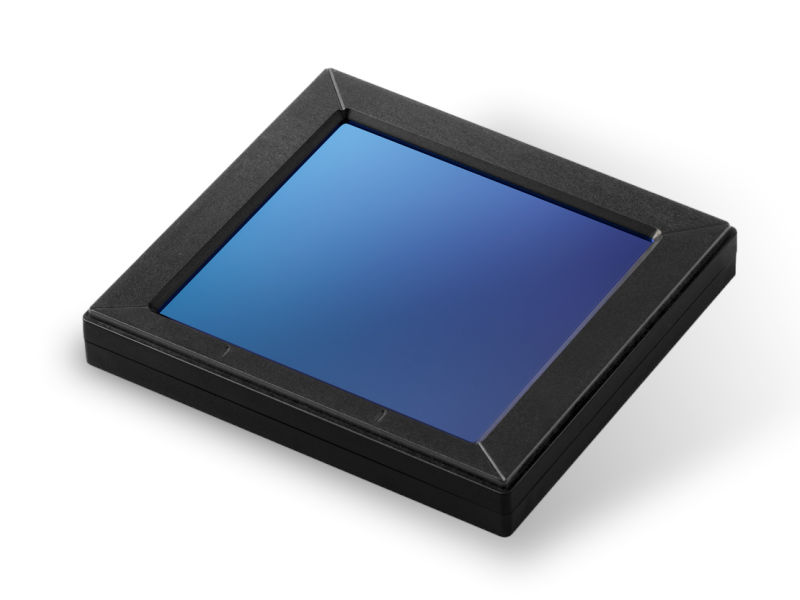

RealScan S60M module
Specifications
| Scanner | Module | |
| Device name | RealScan S60 | RealScan S60M |
| Manufacturer | Xperix Inc. | |
| Connection | USB 2.0 | |
| Supported OS (*) | Microsoft Windows, Android | |
| Resolution | 500 ppi | |
| Platen size | 83 x 78 mm (3.3" x 3.1") | |
| Image capture area (Active platen size) |
82 x 76 mm (3.2" x 3.0") | |
| Fingerprint image size |
1600 x 1500 pixels (for 4 finger slaps)
900 x 900 pixels (for 2 finger flats) 800 x 750 pixels (for single rolled/flat finger) |
|
| Sensor type | Optical | |
| Device size | 118 x 120 x 19 mm (4.6" x 4.7" x 0.8") |
102 x 112 x 16 mm (4.0" x 4.4" x 0.6") |
| Device weight | 220 g (7.8 oz) | 189 g (6.7 oz) |
| Operating temperature | -10°C ~ +55°C (14°F ~ 131°F) | |
| Operating humidity | 10% - 90% (non-condencing) | |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Xperix / Suprema scanners
Neurotechnology SDKs also include support modules for these Xperix and Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 2 and BM-Slim2
- BioMini Slim 3 and BM-Slim3
- BioMini Combo
- RealScan-10
- RealScan-G10
- RealScan-D
- RealScan-FC
- RealScan-F
- SFR300-S
- SFU300
