Koehlke KIAU-5110B3

Fingerprint reader

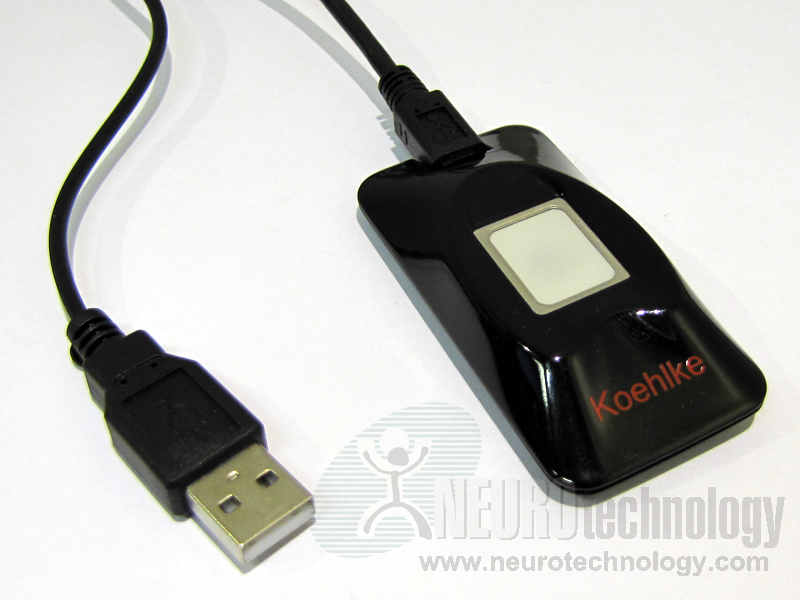

Koehlke KIAU-5110B3 fingerprint reader
Click to zoom


OEM module

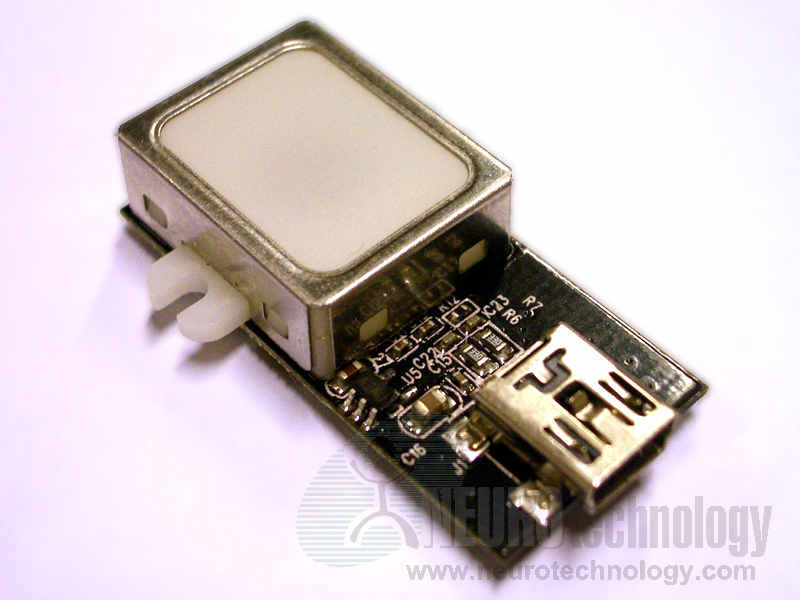

Koehlke KIAU-5110B3 OEM fingerprint sensor module
Click to zoom

The KIAU-5110B3 from Koehlke International is an optical flat fingerprint reader with USB connection. The manufacturer specifies that the fingerprint sensor is able to reject latent fingerprints.

The KIAU-5110B3 is also available as an OEM module suitable for installing into notebooks, smartphones and other mobile devices.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

Sensor Name KIAU-5110B3
Manufacturer Koehlke International Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 500 ppi
Image capture area (Platen size) 12 x 15 mm (0.5" x 0.6")
Fingerprint image size 240 x 288 pixels
Sensor type Optical, CMOS
Fingerprint reader size 70 x 35 x 12 mm (2.8" x 1.4" x 0.5")
Operating temperature 0°C ~ +70°C;
Operating humidity 0-85% non-condensing

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Koehlke devices

Neurotechnology SDKs also include support modules for KIA-UM01 Fingerprint Mouse that is based on the same fingerprint sensor.
