Mannix

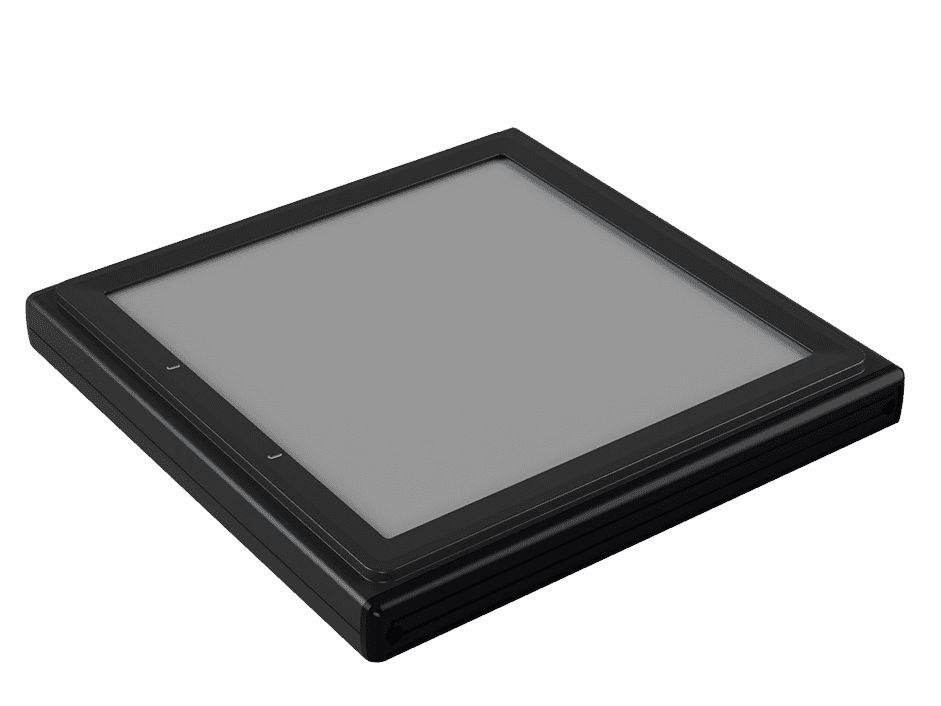

Integrated Biometrics Mannix is an Appendix F and Mobile ID FAP 60certified fingerprint and palmprint reader. The lightweight, compact device is USB-powered and designed to capture these types of fingerprints and palmprints:

  • Upper Palm
  • Lower Palm
  • Writer's Palm
  • Four-finger slap
  • Single rolled fingerprint
  • Single flat fingerprint

The sensor is based on company's proprietary Light Emitting Sensor (LES) technology which uses a patented capture method. The technology allows to reject spoofing atttacks woth fake fingers or palms made from synthetic materials.

The manufacturer specifies that the sensor has IP65 Ingress protection. The whole device meets military durability standards.

Support module for this sensor is included in:

Specifications

Scanner Name Mannix Fingerprint and Palm Scanner
Manufacturer Integrated Biometrics
Connection USB 3.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 128 x 128 mm (5.0" x 5.0") - platen size
127 x 127 mm (5.0" x 5.0") - sensing area
Image size 2500 x 2500 pixels
Sensor type LES (patented technology)
Device size 161 x 161 x 20 mm (6.3" x 6.3" x 0.8")
Device weight 600 grams (1.3 lbs) without cable
Operating temperature -10°C ~ +55°C (14°F ~ 131°F)
Operating humidity 30 - 85 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Integrated Biometrics devices

Neurotechnology SDKs also include support module for these fingerprint capture devices from Integrated Biometrics:
