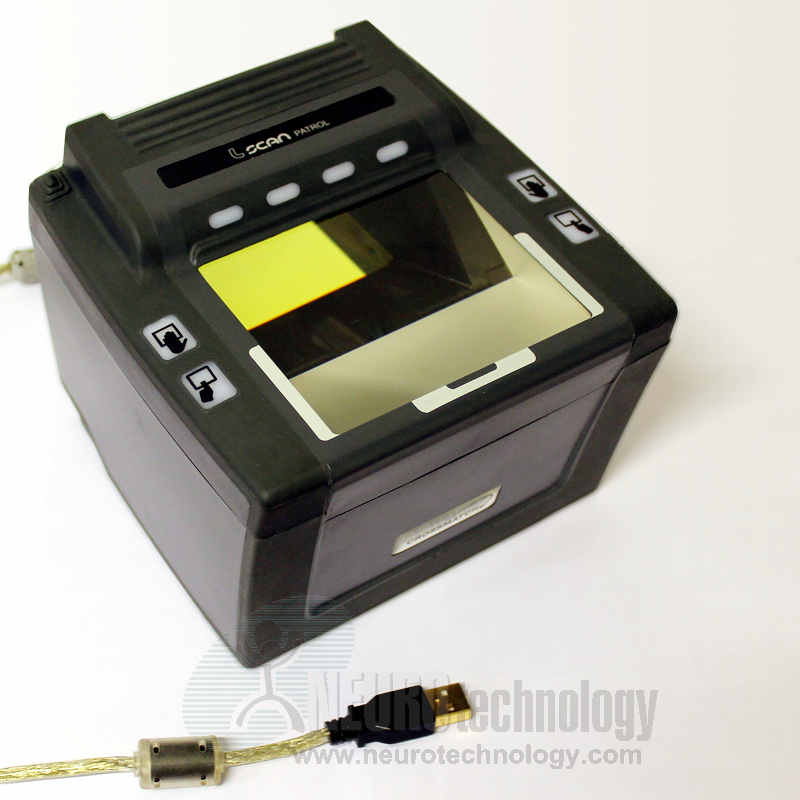

Cross Match Patrol and Patrol ID
The Cross Match Patrol and Patrol ID fingerprint readers are designed for quick fingerprint capture in various conditions. Both scanners are certified by FBI for both civil ID flats and full criminal ten-print flats. Scanners image quality complies with FBI's IAFIS Appendix F specification.
The Patrol ID reader is able to capture only flat fingerprints: four-finger slaps, dual thumbs or single flats.
The Patrol reader is a more complex model that is able to capture both rolled and flat fingerprints.
The manufacturer specifies that both scanners feature IP54 rugged casing. Scanners include easy to understand pictograms, fully automatic image capture and instant quality check feedback to the user using LEDs.
Support modules for this scanner are included in:
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Patrol | Patrol ID | |
| Flat / slap fingerprints capture | + | + |
| Rolled fingerprints capture | + | |
| Common specifications | ||
|---|---|---|
| Manufacturer | Cross Match Technologies Inc. | |
| Connection | USB 2.0 | |
| Supported OS (*) | Microsoft Windows | |
| Resolution | 500 ppi | |
| Image capture area (Platen size) | 81 x 76 mm (3.2" x 3.0") | |
| Sensor type | Optical | |
| Device size | 152 x 152 x 129 mm (6.0" x 6.0" x 5.1") | |
| Device weight | 1.4 kg (3.2 lbs) | |
| Operating temperature | 0°C ~ +50°C | |
| Operating humidity | 10-90 % (non-condensing, splash-resistant) | |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Neurotechnology Solution Partners use this scanner in
HID Crossmatch Patrol scanners used in these systems, created by Neurotechnology Solution Partners:
- SABIS - Secure Advanced Biometric Issuing System system – an eID issuing system created by Brithol Michcoma.
Other Cross Match scanners
Neurotechnology SDKs also include support modules for these Cross Match scanners:
- Guardian 100, Guardian 200 and Guardian 300 scanners
- Guardian USB / FW family scanners
- L SCAN 500P
- Verifier 300 Classic, Verifier 300 LC, Verifier 300 LC 2.0
- Verifier 320 LC
