Cross Match Guardian 100 / 200 / 300 / Module
The Cross Match Guardian family of fingerprint readers provide ten-print scanning in a compact package. All scanners are certified by FBI for both civil ID flats and full criminal ten-print flats. Scanners image quality complies with FBI's IAFIS Appendix F specification.

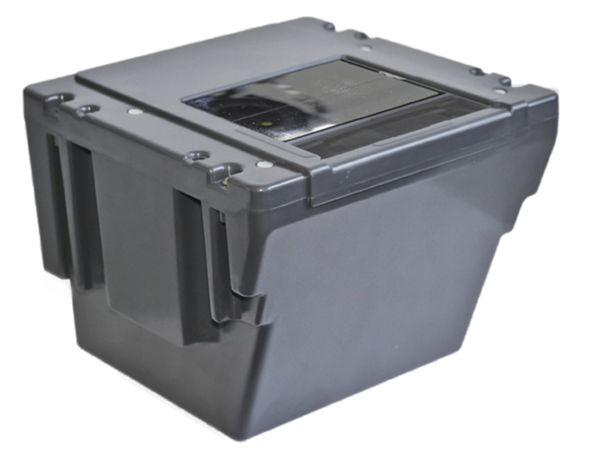

Guardian 100 is able to capture only flat fingerprints: four-finger slaps, dual thumbs or single flats. Guardian 200, Guardian 300 and Guardian Module are also able to capture rolled fingerprints, as well as slaps and flat fingerprints.

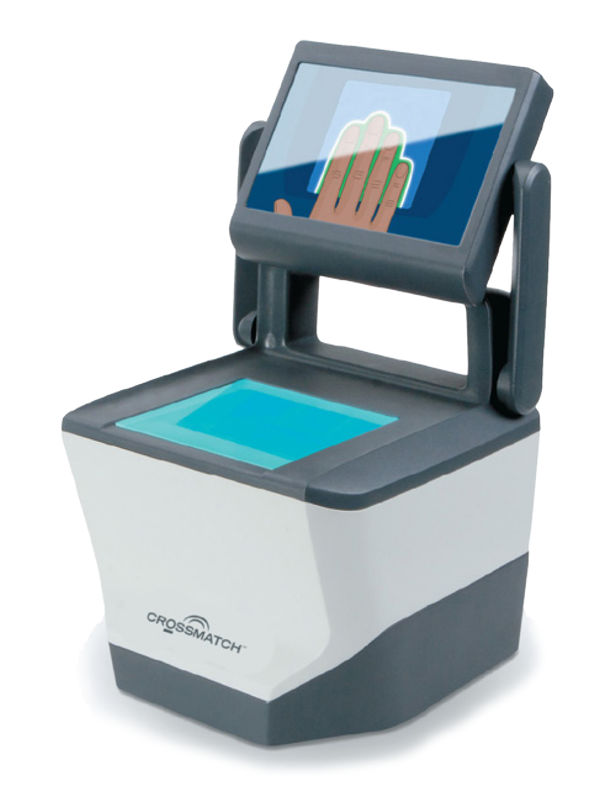

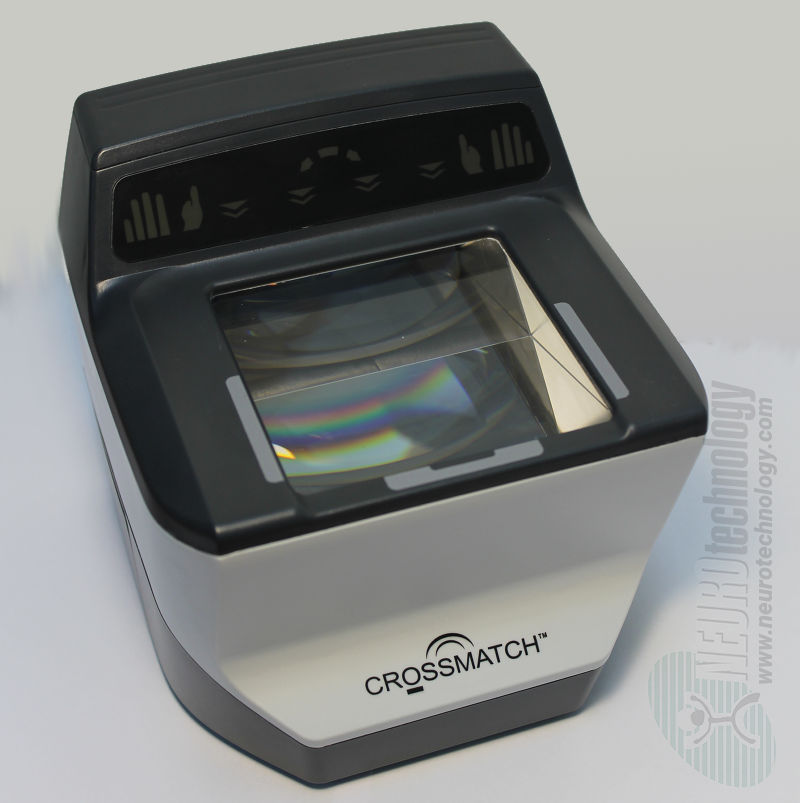

Guardian 100 and Guardian 200 provide user guidance via illuminated pictograms above the capture area. Guardian 300 features a color touchscreen for both user guidance and operating the scanner.
The manufacturer specifies that Guardian 100, Guardian 200 and Guardian 300 feature IP54 rugged casing.
Support modules for these scanners are included in MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.
Specifications
| Guardian 100 | Guardian 200 | Guardian 300 | Guardian Module | |
| Flat / slap fingerprints capture | + | + | + | + |
| Rolled fingerprints capture | + | + | + | |
| Common specifications | ||||
|---|---|---|---|---|
| Manufacturer | Cross Match Technologies Inc. | |||
| Connection | USB 2.0 | |||
| Supported OS (*) | Microsoft Windows | |||
| Resolution | 500 ppi | |||
| Image capture area (Platen size) | 81 x 84 mm (3.2" x 3.3") | |||
| Sensor type | Optical | |||
| Device size | 152 x 152 x 155 mm (6.0" x 6.0" x 6.1") | 152 x 152 x 155 mm (6.0" x 6.0" x 6.1") |
Open: 152 x 114 x 254 mm (6.0" x 4.5" x 10.0") Closed: 152 x 114 x 145 mm (6.0" x 4.5" x 5.7") |
152 x 122 x 158 mm (6.0" x 4.8" x 6.2") |
| Device weight | 1.5 kg (3.3 lbs) | 1.5 kg (3.3 lbs) | 1.6 kg (3.5 lbs) | 1.4 kg (3.0 lbs) |
| Operating temperature | 0°C ~ +50°C (32°F ~ +122°F) | |||
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Cross Match scanners
Neurotechnology SDKs also include support modules for these Cross Match scanners:
- Guardian USB / FW family scanners
- Patrol and Patrol ID scanners
- L SCAN 500P
- Verifier 300 Classic, Verifier 300 LC, Verifier 300 LC 2.0
- Verifier 320 LC
