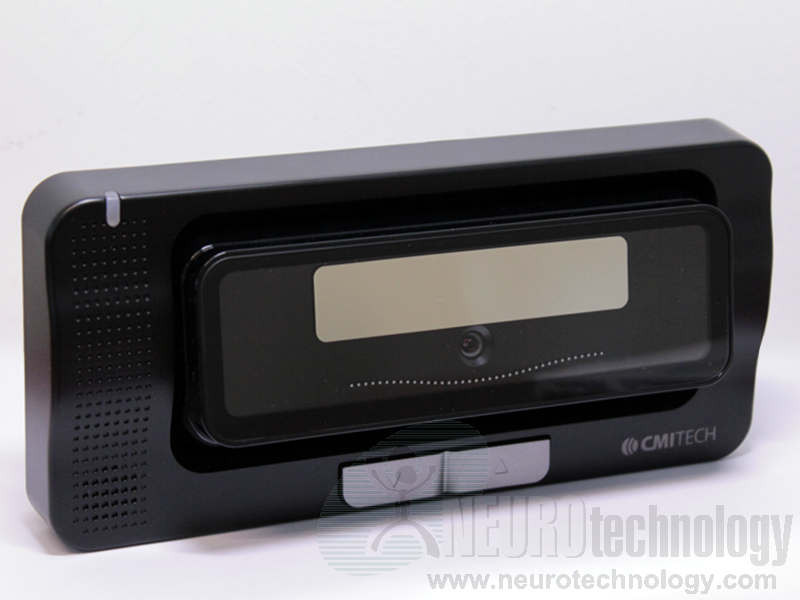

CMITECH EMX-30
CMITECH EMX-30 is a dual iris and face scanner, which performs capture without physical contact. The scanner is able to adapt to subject's position and automatically tilts the sensor part to match subject's height. Also, the scanner uses LED-based feedback to provide assistance with correct distance from the scanner.
The manufacturer specifies that the scanner is captures both irises simultaneously. Also specified the scanner's ability to detect off-axis gaze. The captured iris image quality meets ISO/IEC 19794-6 requirements.
This device can operate with these Neurotechnology SDKs:
- MegaMatcher 13.1 SDK – iris and face capture
- MegaMatcher On Card 13.1 SDK – iris and face capture
- VeriEye 13.1 SDK – iris capture
- VeriLook 13.1 SDK – face capture
Specifications:
| Name | EMX-30 |
| Manufacturer | CMI TECH |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows |
| Iris capture distance | 32 - 35 cm (12.6" - 13.8") |
| Iris image size | 2 images, 640 x 480 pixels each |
| Eye illumination | Near-infrared |
| Device size | 219 x 161 x 58 mm (8.6" x 6.3" x 2.3") |
| Device weight (without base) | 465 g (16.4 oz) |
| Operating temperature range | 0°C ~ +40°C |
| Operating humidity range | 10-90 % (non-condensing) |
Other CMITech devices
Neurotechnology SDKs also include support modules for:
- BMT-20 – binocular dual iris capture device.
