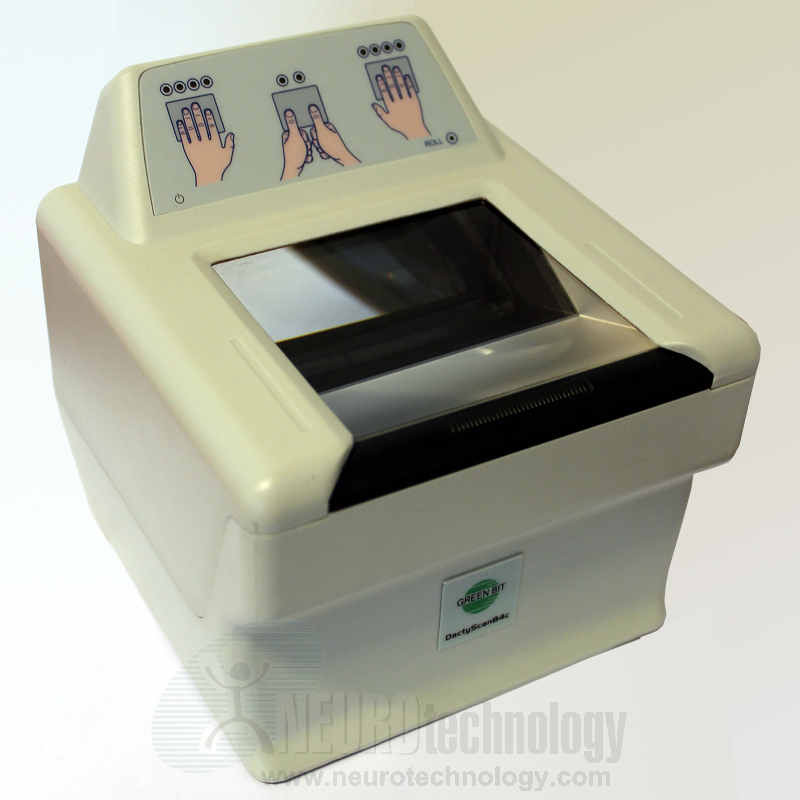

Thales Cogent DactyScan84c
DactyScan84c from Thales Cogent is an optical live fingerprint reader with large platen. The reader is capable to capture 4-slap and 2-thumbs fingerprints, allowing to collect all 10 fingerprints using 4+4+2 method. Also the DactyScan84c can capture single rolled and flat fingerprints.
The device is certified by FBI as compliant with FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F. Also it is compliant with ANSI/NIST-ITL-1-2007, ANSI/NIST-ITL-1-2000 and ISO/IEC 19794-4 standards.
Support modules for this scanner are included in:
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Scanner Name | Thales Cogent Multifinger Scanner DactyScan84c |
| Manufacturer | Thales S.A. previously manufactured by Green Bit S.p.A. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows Linux (x86-64) Android |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 81 x 76 mm (3.2" x 3.0") |
| Sensor type | Optical |
| Device size |
148 x 152 x 148 mm (5.8" x 6.0" x 5.8") - standard version
148 x 152 x 121 mm (5.8" x 6.0" x 4.8") - flat top version |
| Device weight | 1.4 kg (3.1 lbs.) |
| Operating temperature | 0°C ~ +50°C |
| Operating humidity | 10% ~ 90% (non-condensing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other scanners from the manufacturer
Neurotechnology SDKs also include support modules for these fingerprint scanners from Thales:
