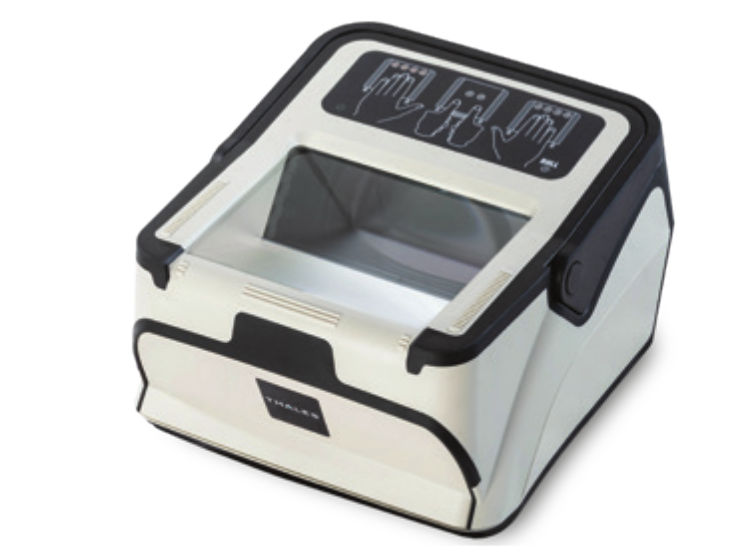

Thales Cogent CS500f

The Thales Cogent Multifinger Scanner CS500f is a compact fingerprint reader for applications like e-ID document issuing or criminal identification. The scanner performs fast ten-print acquisition, as well as rolled fingerprint capture. It can be used in desktop or mobile environments. The device is certified by the FBI as compliant with Mobile ID Appendix F FAP60.

The manufacturer specifies that the scanner can detect fake fingerprints. Also, the device features an IP54-rated casing and a 6H scratch-proof, durable sensor surface.

Support modules for this scanner are included in MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name Thales Cogent Multifinger Scanner CS500f
Manufacturer Thales S.A.
Connection USB 3.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 81 x 76 mm (3.2" x 3.0")
Sensor type Optical
Device size 151 x 148 x 102 mm (5.9" x 5.8" x 4.0")
Device weight 1.5 kg (3.3 lbs.)
Operating temperature 0°C ~ +50°C (32°F ~ 122°F)
Operating humidity 10% ~ 90% (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other scanners from the manufacturer

Neurotechnology SDKs also include support modules for these fingerprint scanners from Thales:
