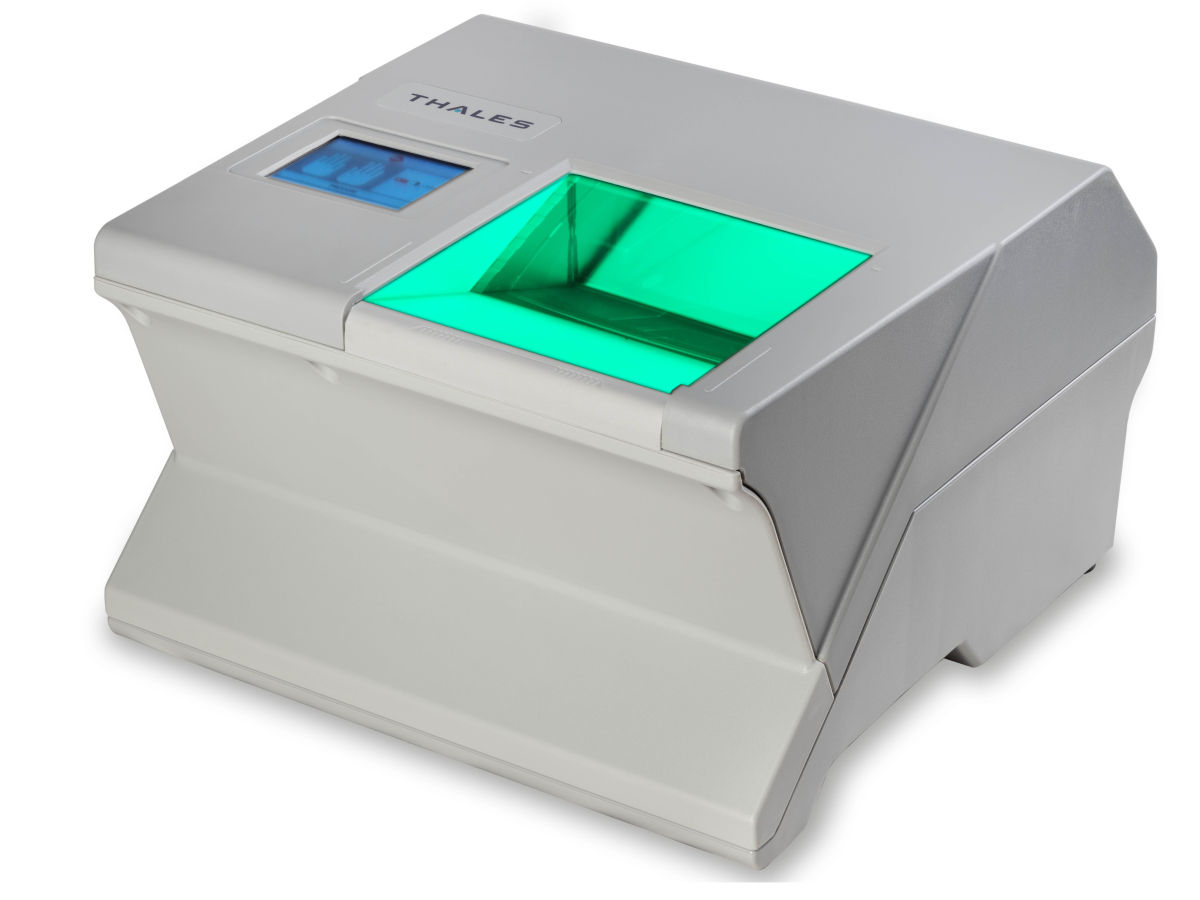

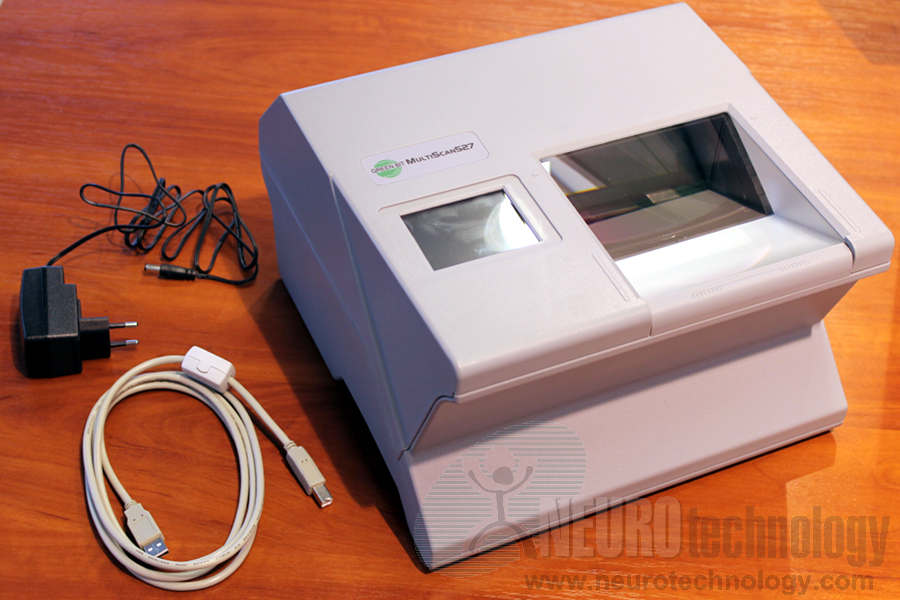

Thales Cogent MultiScan527
MultiScan527 from Thales Cogent is an optical palm print and fingerprint reader. The scanner is able to acquire half-palm images (upper and lower), four-finger slaps, dual thumbs, as well as single rolled and flat fingerprints.
The device is certified by the FBI as compliant with FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F and is also compliant with Appendix P requirements.
The manufacturer specifies, that the MultiScan527 can be optionally equipped with additional accessories like smart card / NFC reader, foot pedal etc. Also, an OEM scanner module is available for embedding into custom solutions.
Support modules for this scanner are included in:
- MegaMatcher 13.1 SDK – includes components for template extraction from palm print images, and single or multiple fingerprint images;
- MegaMatcher On Card 13.1 SDK – - includes components for template extraction from single fingerprint images;
- VeriFinger 13.1 SDK – includes components for template extraction from single or multiple fingerprint images.
Specifications
| Scanner Name | Thales Cogent Palm Scanner MultiScan527 |
| Manufacturer | Thales S.A. previously manufactured by Green Bit S.p.A. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows Linux (x86-64) Android |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 127 x 127 mm (5.0" x 5.0") |
| Sensor type | Optical |
| Device size | 300 x 300 x 245 mm (11.8" x 11.8" x 9.6") |
| Device weight | 4.9 kg (10.8 lbs.) |
| Operating temperature | 0°C ~ +50°C |
| Operating humidity | 10-90 % (non-condensing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Where to order this device?
Buy Thales Cogent MultiScan527 at Biometric Supply – a subsidiary of Neurotechnology.
