SF202 and SF302GM

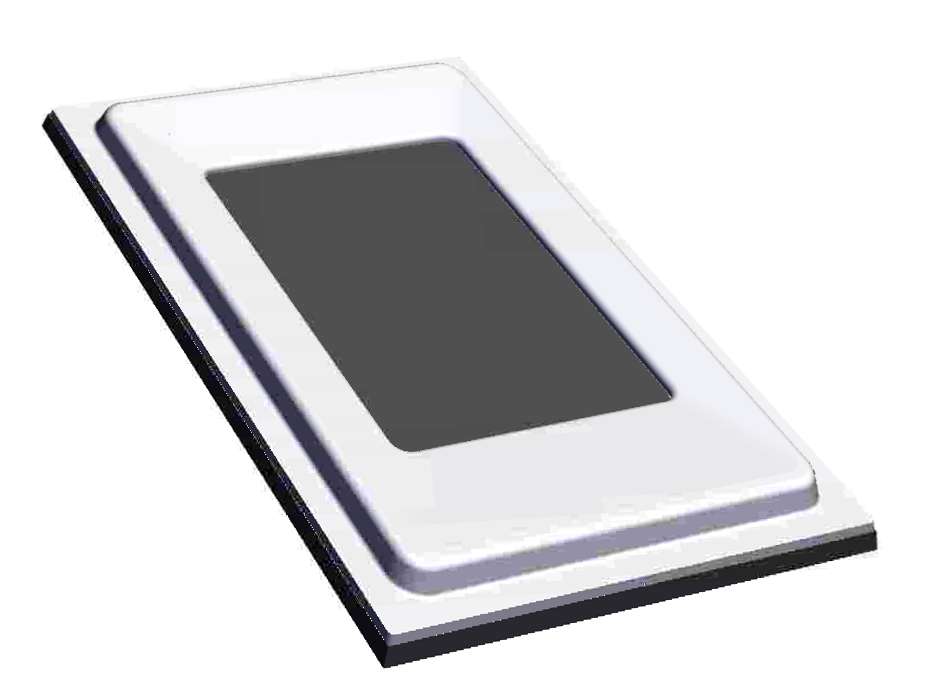

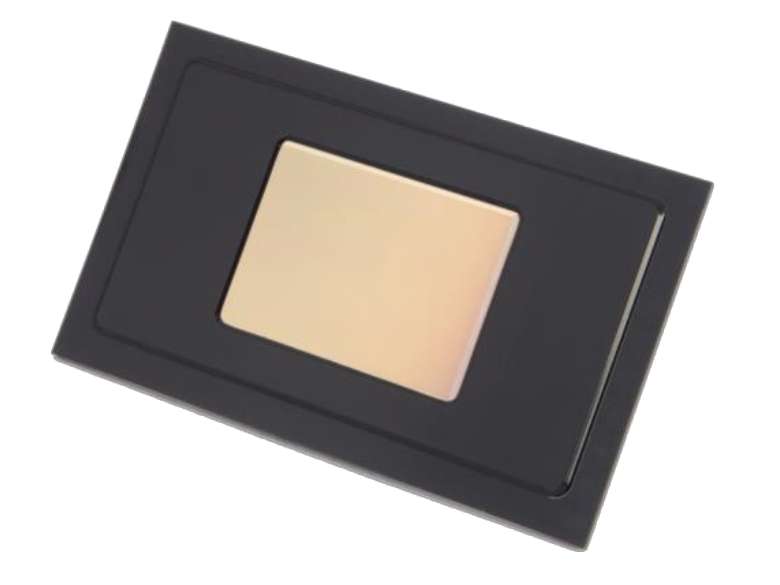

The SF202 and SF302GM are capacitive fingerprint sensors made by Image Match Design Inc. (iMD).

iMD SF302GM is certified by the FBI as PIV compliant.

The manufacturer specifies that the sensors feature rugged, durable construction, which is resistant to environmental hazards.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK and VeriFinger 13.0 SDK.

Specifications

Device Name SF202 Fingerprint Image Sensor SF302 Module
Manufacturer Image Match Design Inc.
Connection USB
Supported OS (*) Microsoft Windows
the 64 bit OS support is limited to 32 bit applications only
Resolution 508 ppi 508 ppi
Image capture area (Sensing area) 10 x 14 mm (0.4" x 0.6") 13 x 18 mm (0.5" x 0.7")
Fingerprint image size 208 x 288 pixels 256 x 360 pixels
Sensor type Capacitive
Size 33 x 20 x 4 mm (1.32" x 0.80" x 0.15") 35 x 23 x 5 mm (1.38" x 0.91" x 0.18")
Operating temperature -20°C ~ +70°C (-4°F ~ +158°F)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other iMD scanners

Neurotechnology SDKs also include support modules for these iMD scanners and sensors:
