Hongda S700

Buy S700
at Biometric Supply,

a subsidiary of Neurotechnology.

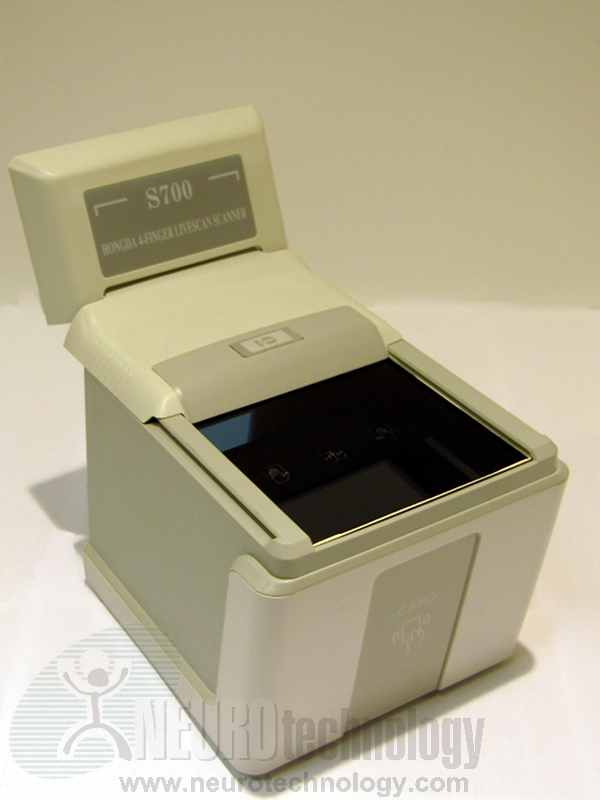

General view
Hongda S700 fingerprint scanner, general view
Click to zoom

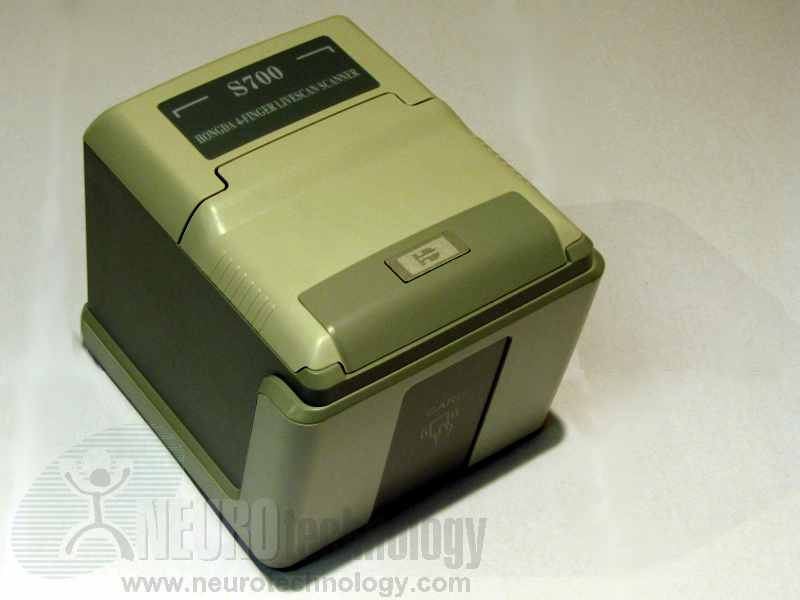

Closed lid
Hongda S700 fingerprint scanner, closed lid
Click to zoom

Hongda S700 is an optical USB 2.0 fingerprint scanner that is able to scan up to 4 flat fingerprints simultaneously. The scanner is certified by FBI as compatible with IAFIS IQS.

Scanners rugged design includes a plastic lid.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

Scanner Name Hongda S700
Manufacturer Hongda Opto-Electron Co., Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 500 ppi
Image capture area (Platen size) 81 x 76 mm (3.2" x 3.0")
Fingerprint image size 1600 x 1500 pixels
Sensor type Optical
Device size 124 x 150 x 120 mm (4.9" x 5.9" x 4.7")
Device weight 1.8 kg (4.0 lbs)
Operating temperature +2°C ~ +49°C
Operating humidity 10-90 %, non-condensing

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Where to order this device?

Buy S700 at Biometric Supply – a subsidiary of Neurotechnology.

Other Hongda scanners

Neurotechnology SDKs also include support modules for these Hongda scanners:

  • S500 – single finger scanner;
  • S680 – single rolled/flat finger scanner.
