Hongda S680

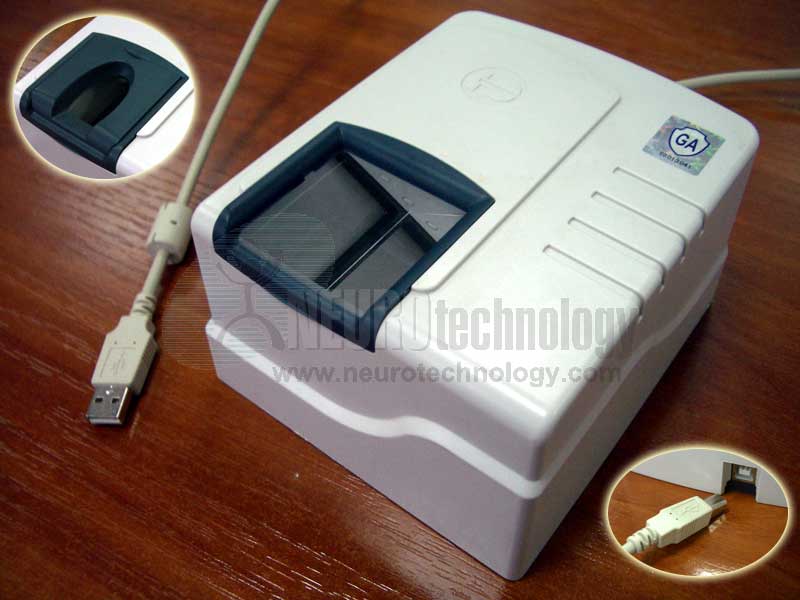

General view
Hongda S680 fingerprint scanner, general view without and with a lid
Click to zoom

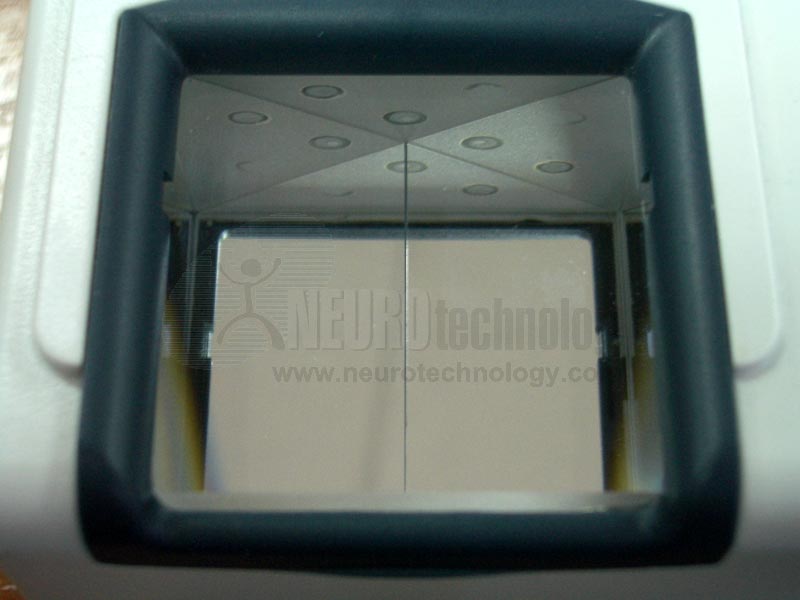

Close-up on sensor
Close-up on Hongda S680 fingerprint sensor
Click to zoom

Hongda S680 is an optical USB 2.0 fingerprint scanner that is able to scan rolled and flat fingerprints. A plastic lid can be mounted on top of sensor for more comfortable flat fingerprint scanning.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

Scanner Name Hongda S680
Manufacturer Hongda Opto-Electron Co., Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 500 ppi
Image capture area (Platen size) 40 x 40 mm (1.6" x 1.6")
Sensor type Optical
Device size 142 x 120 x 77 mm (5.6" x 4.7" x 3.0")
Device weight 650 grams (1.4 lbs)
Operating temperature -10°C ~ +55°C
Operating humidity 20-85 %

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Hongda scanners

Neurotechnology SDKs also include support modules for these Hongda scanners:

  • S500 – single finger scanner;
  • S700 – four finger scanner.
