AuthenTec AES2660

Fingerprint reader based on AES2660 sensor
Fingerprint reader based on AuthenTec AES2660 fingerprint sensor
Click to zoom

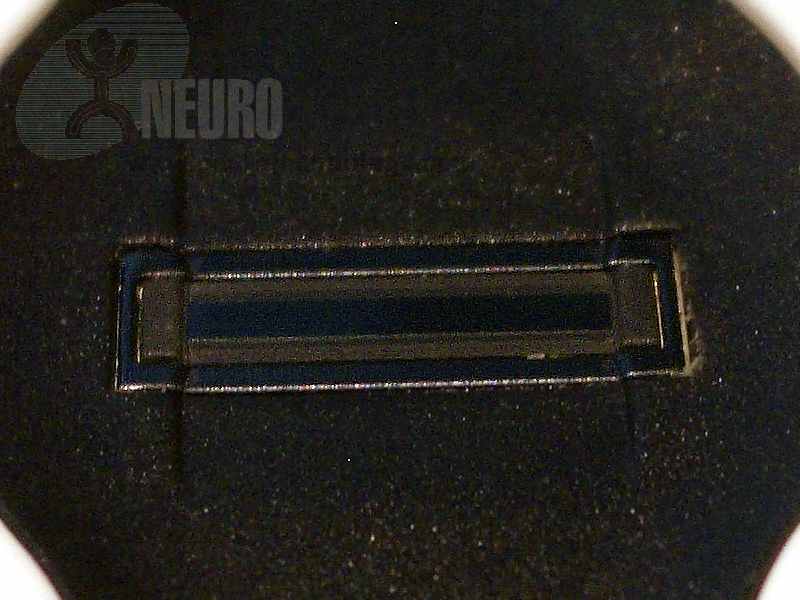

Close-up on sensor
Close-up on AuthenTec AES2660 fingerprint sensor
Click to zoom

AuthenTec AES2660 is a capacitive USB 2.0 fingerprint sensor that uses sweep capture method.

Sensor's manufacturer specifies that AES2660 features anti-spoof protection and low power consumption with selected suspend support. Sensor''s surface coating is able to withstand more than 10 million rubs.

The sensor is no longer manufactured.

Support modules for this sensor were included in MegaMatcher 5.1 SDK, MegaMatcher On Card 3.4 SDK and VeriFinger 7.1 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

Sensor Name AES2660
Manufacturer AuthenTec, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 9.75 x 0.41 mm (0.38" x 0.02")
Fingerprint image frame size 192 x 8 pixels
Sensor type Capacitive
Sensor Size 13.8 x 5.0 x 1.68 mm (0.54" x 0.20" x 0.07")
Operating temperature 0°C ~ +70°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other AuthenTec sensors

Neurotechnology SDKs also include support modules for these AuthenTec sensors:

  • AES2550 – 500 ppi capacitive swipe sensor
  • AES2810 – 500 ppi capacitive swipe sensor with on-chip hardware security module
  • AES2501B – 500 ppi capacitive swipe sensor, no longer manufactured
  • AES4000 – 250 ppi capacitive sensor for flat fingerprints
  • AF S2 – 250 ppi capacitive sensor, no longer manufactured
