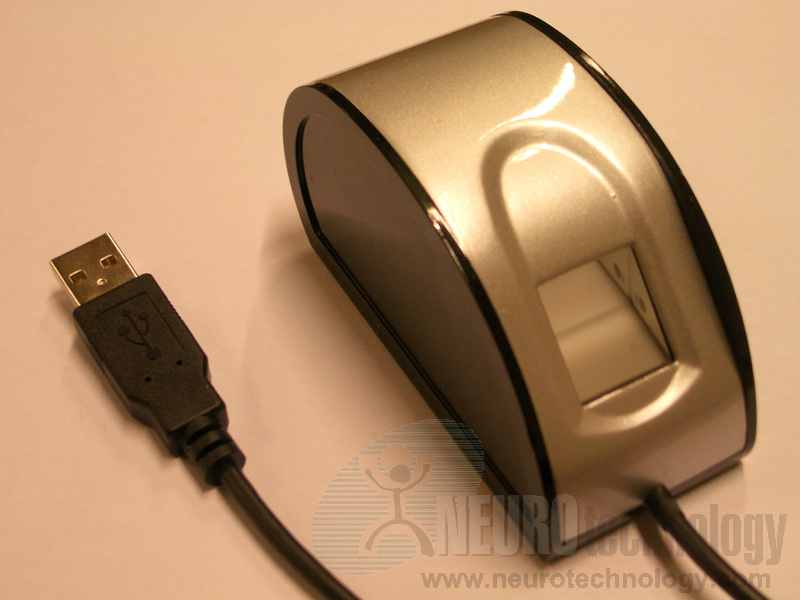

ZKS-1000 from ZKS Group is an optical USB 2.0 fingerprint scanner.

Support modules for this scanner were included in MegaMatcher 9.0 SDK, MegaMatcher On Card 3.5 SDK and VeriFinger 9.0 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name ZKS-1000 USB Reader
Manufacturer ZKS Group
Connection USB 2.0
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 403 ppi
Image capture area (Platen size) 14 x 16 mm (0.5" x 0.6")
Fingerprint image size 256 x 256 pixels
Sensor type Optical, CMOS
Device size 80 x 80 x 46 mm (3.1" x 3.1" x 1.8")
Operating temperature 0°C ~ +70°C
Operating humidity 10-90 %

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
