ViRDI FOH02SC

General view

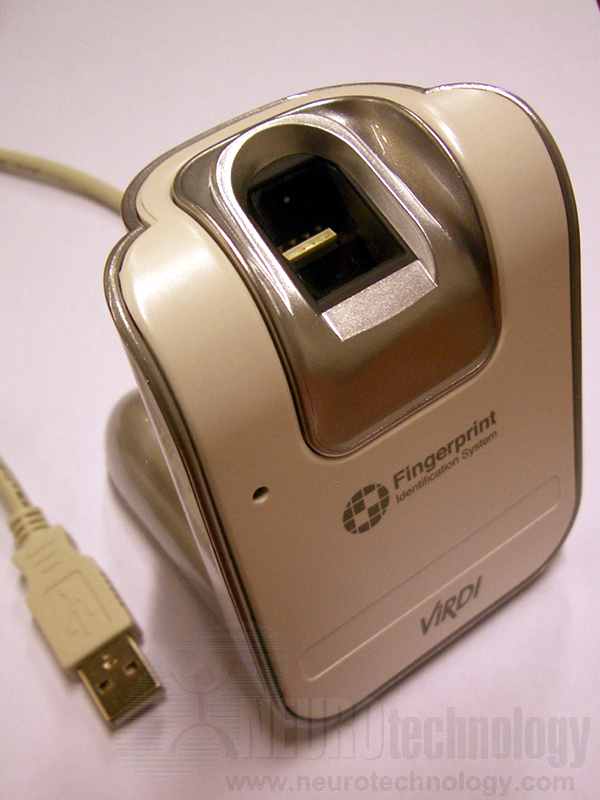

ViRDI FOH02SC fingerprint scanner, general view
Click to zoom


Close-up on sensor

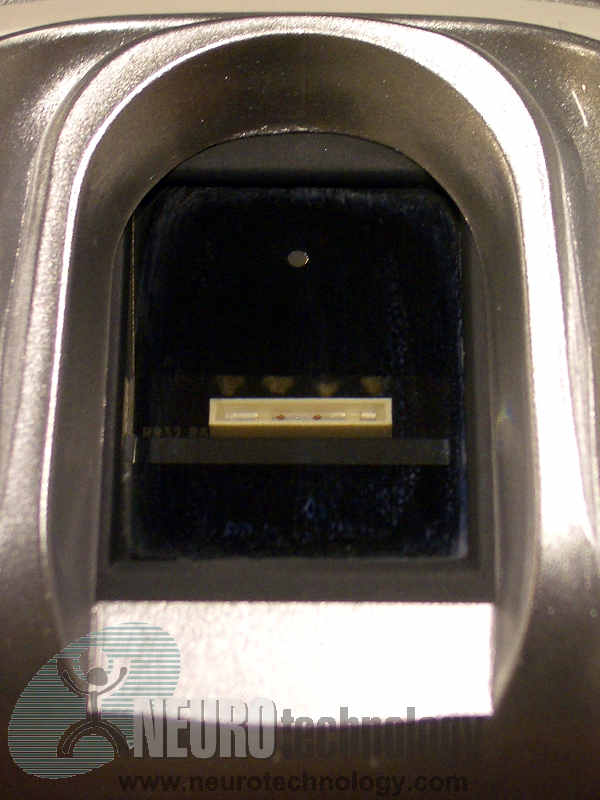

Close-up on ViRDI FOH02SC fingerprint sensor
Click to zoom

The Virdi FOH02SC from UnionCommunity is an USB 2.0 device that combines fingerprint reader and contactless smart card reader.

Device manufacturer specifies that the fingerprint reader is able to perform live finger detection and reject fake fingerprints made from paper, silicon, rubber or other materials.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK and VeriFinger 13.0 SDK.

Specifications

General
Device name ViRDI FOH02SC fingerprint & smart card reader
Manufacturer UnionCommunity Co. Ltd.
Connection USB 2.0
Device size 74 x 84 x 95 mm (2.9" x 3.3" x 3.7")
Operating temperature -20°C ~ +50°C
Operating humidity Less than 90% RH, non-condensing
Fingerprint reader
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 500 ppi
Image capture area (Platen size) 16 x 18 mm (0.6" x 0.7")
Sensor type Optical
Smart card reader
Supported cards 13.56 MHz smart cards

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
