TENBIO TOUCH ONE

General view

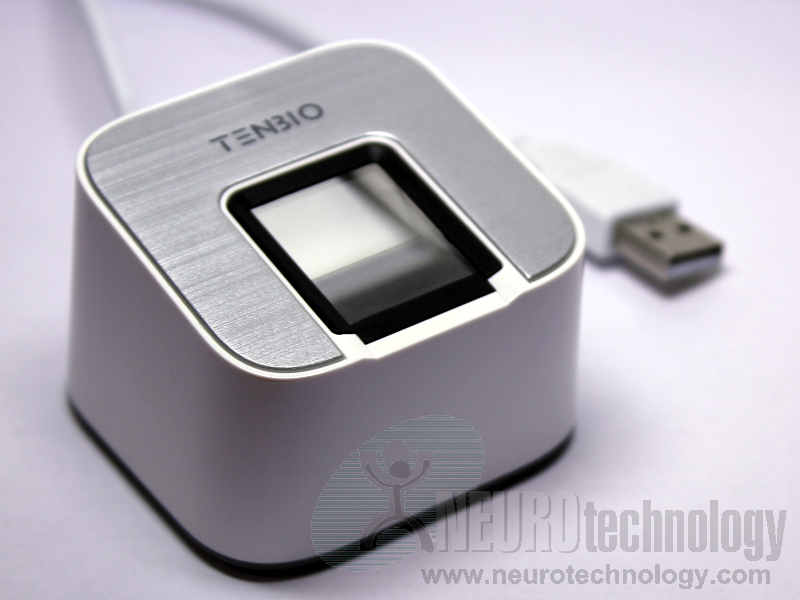

TENBIO TOUCH ONE fingerprint scanner, general view
Click to zoom

TOUCH ONE from TENBIO is an optical fingerprint reader.

The manufacturer specifies that the scanner produces images which are compliant with FIPS-201 (PIV) requirements. Also the device is specified to feature life finger detection functionality.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

Scanner Name TOUCH ONE
Manufacturer TENBIO Biometric Solutions
Connection USB 2.0
Supported OS (*) Microsoft Windows
the 64 bit OS support is limited to 32 bit applications only
Resolution 500 ppi
Image capture area (Platen size) 20 x 25 mm (0.8" x 1.0")
Fingerprint image size 340 x 380 pixels
Sensor type Optical
Illumination Infrared LEDs
Device size 60 x 67 x 48 mm (2.4" x 2.6" x 1.9")
Operating temperature -20°C ~ +50°C
Operating humidity 10 - 90 % (non-condensing)
