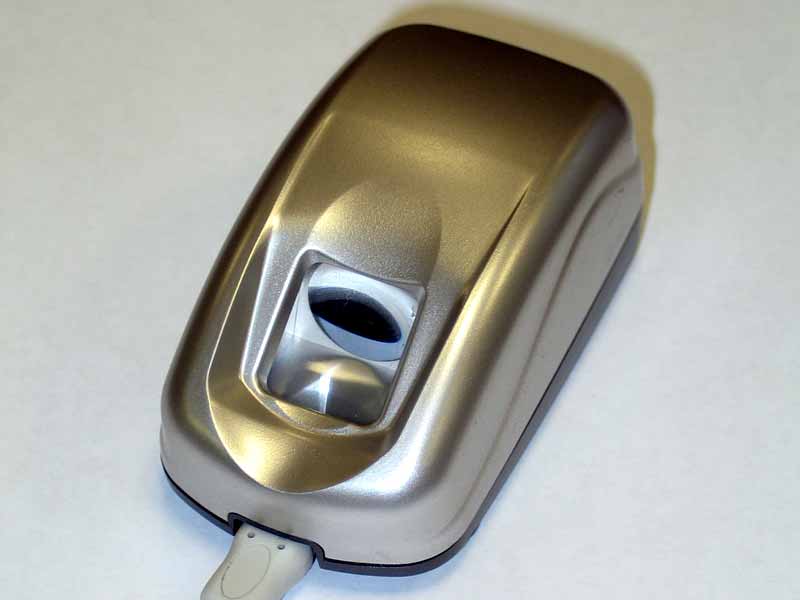

Tacoma CMOS

General view
Tacoma CMOS
Click to zoom

Tacoma CMOS Scanner is an optical USB 2.0 fingerprint scanner. The scanner is also known as TOP1000 CMOS Fingerprint USB Reader.

The scanner is no longer manufactured.

Support modules for this sensor were included in MegaMatcher 5.1 SDK, MegaMatcher On Card 3.4 SDK, VeriFinger 7.1 SDK and Free Fingerprint Verification SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

Scanner Name Tacoma CMOS Scanner
Manufacturer Tacoma Technology Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 500 ppi
Image capture area (Platen size) 13 x 13 mm (0.5" x 0.5")
Fingerprint image size 256 x 256 pixels
Sensor type Optical, CMOS
Device size 80 x 45 x 35 mm (3.1" x 1.8" x 1.4")
Operating temperature -10°C ~ +55°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Where to order this device?

This scanner can be ordered from Neurotechnology distributor in US. Please contact them for more information.
