BIOCA-111

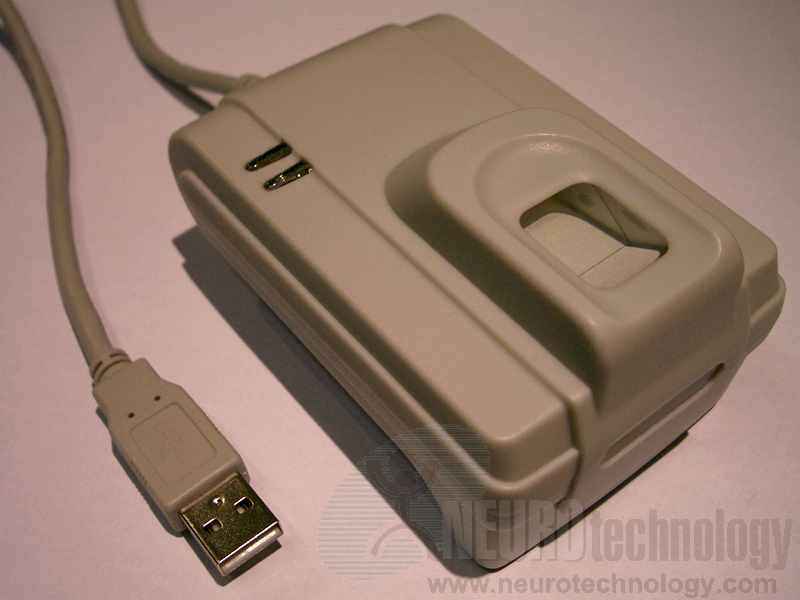

The BIOCA-111 from Shanghai Fingertech is an optical fingerprint reader with USB 2.0 connection.
Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK and VeriFinger 13.0 SDK.
Specifications
| Scanner Name | Optical Fingerprint Reader BIOCA-111 |
| Manufacturer | Shanghai Fingertech Information Co, Ltd |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows (32 bit only) |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 17 x 22 mm (0.7" x 0.9") |
| Sensor type | Optical |
| Device size | 100 x 66 x 51 mm (3.9" x 2.6" x 2.0") |
| Device weight | 145 grams (5.1 oz) |
| Operating temperature | -15°C ~ +45°C |
| Operating humidity | 45-85 % |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
