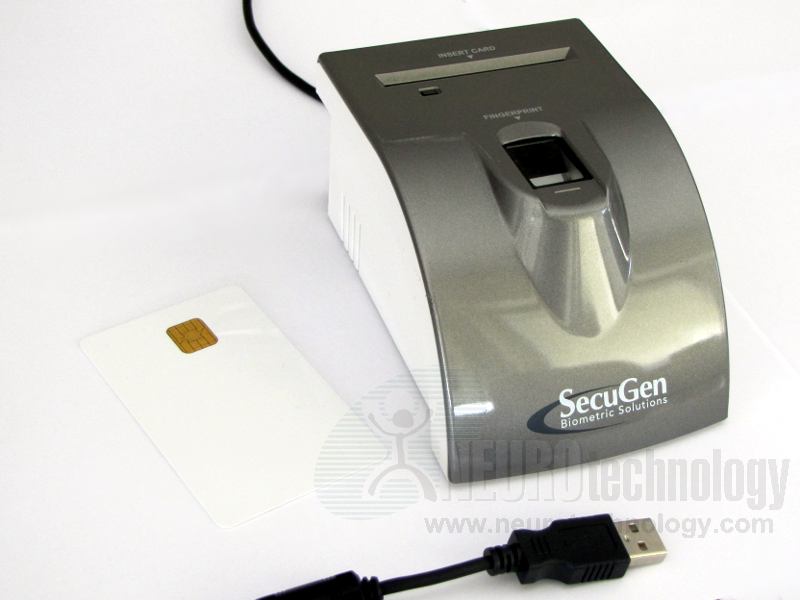

General view
SecuGen iD-USB SC/PIV, general view
Click to zoom

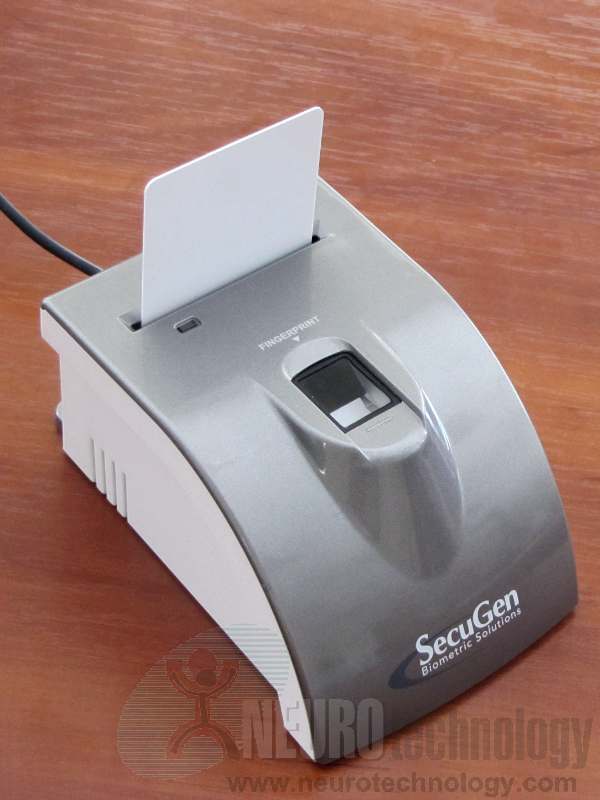

Smart card inside
SecuGen iD-USB SC/PIV, smart card inside view
Click to zoom

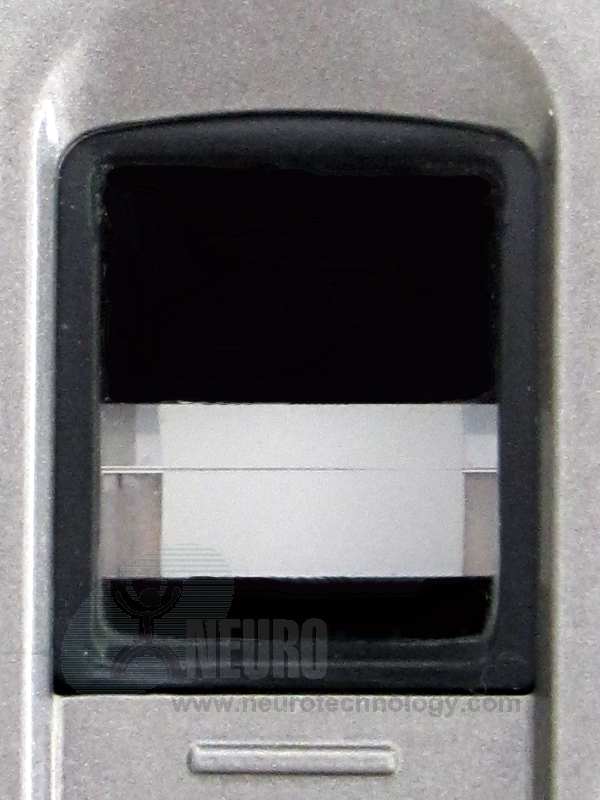

Close-up on sensor
SecuGen iD-USB SC/PIV fingerprint sensor close-up
Click to zoom

SecuGen iD-USB SC/PIV a USB 2.0 optical fingerprint scanner with an embedded ISO/IEC 7816 compliant contact smart card reader. Technically the device is based on the same fingerprint sensor that is used in Hamster IV fingerprint reader.

Support modules for this scanner are included in MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK, VeriFinger 13.0 SDK and Free Fingerprint Verification SDK.


Device Name SecuGen iD-USB SC/PIV
Manufacturer SecuGen Corporation
Connection USB 2.0
Device size 140 x 88 x 67 mm (5.5" x 3.5" x 2.6")
Operating temperature 0°C ~ +40°C
Operating humidity 0-90 % (non-condensing)
Fingerprint reader
Supported OS (*) Microsoft Windows
Resolution 508 ppi
Image capture area (Platen size) 16 x 18 mm (0.6" x 0.7")
Fingerprint image size 258 x 336 pixels
Sensor type Optical
Illumination Red LED
Smart card reader
Supported OS (*) Microsoft Windows
Standards compliancy ISO/IEC 7816 & EMV2 2000 Level 1
Supported card clock frequency up to 8 MHz
Accepted card voltage 1.8V, 3V, 5V

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Where to order this device?

Buy iD-USB SC/PIV at Biometric Supply – a subsidiary of Neurotechnology.

Other SecuGen scanners

Neurotechnology SDKs also include support modules for these SecuGen scanners:
