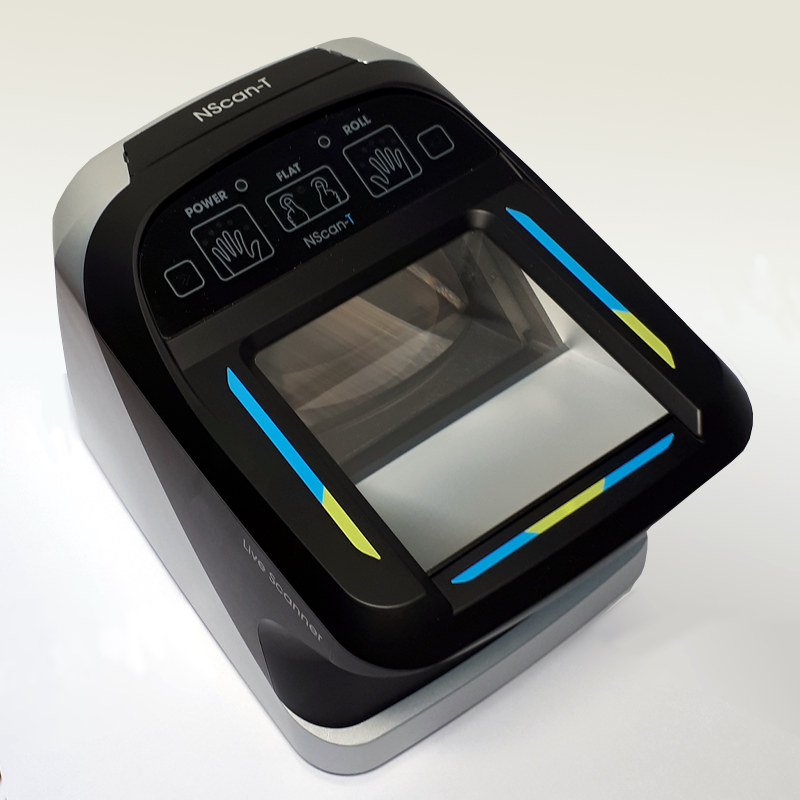

The NScan-T is a live scanner which can capture 4-finger slaps, as well as single fingerprints and thumbprints. Also the device is able to capture rolled fingerprints.
The scanner is certified by FBI as compliant with FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F.
The manufacturer specifies that the device has IP 54 protected case.
|Scanner Name||NScan-T Live Scanner / 4 Finger Scanner|
|Manufacturer||NITGEN Co., Ltd.|
|Supported OS (*)||Microsoft Windows (32-bit and 64-bit)|
|Platen size||89 x 89 mm (3.5" x 3.5")|
|Image capture area (Platen size)||81 x 76 mm (3.2" x 3.0")|
|Sensor type||Optical, CMOS|
|Device size||162 x 158 x 214 mm (6.4" x 6.2" x 8.4")|
|Device weight||2.3 kg (5.1 lbs)|
|Operating temperature||0°C ~ +50°C (32°F ~ 122°F)|
|Operating humidity||10-90 % (non-condensing)|
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other NITGEN scanners
Neurotechnology SDKs also include support modules for these NITGEN scanners:
