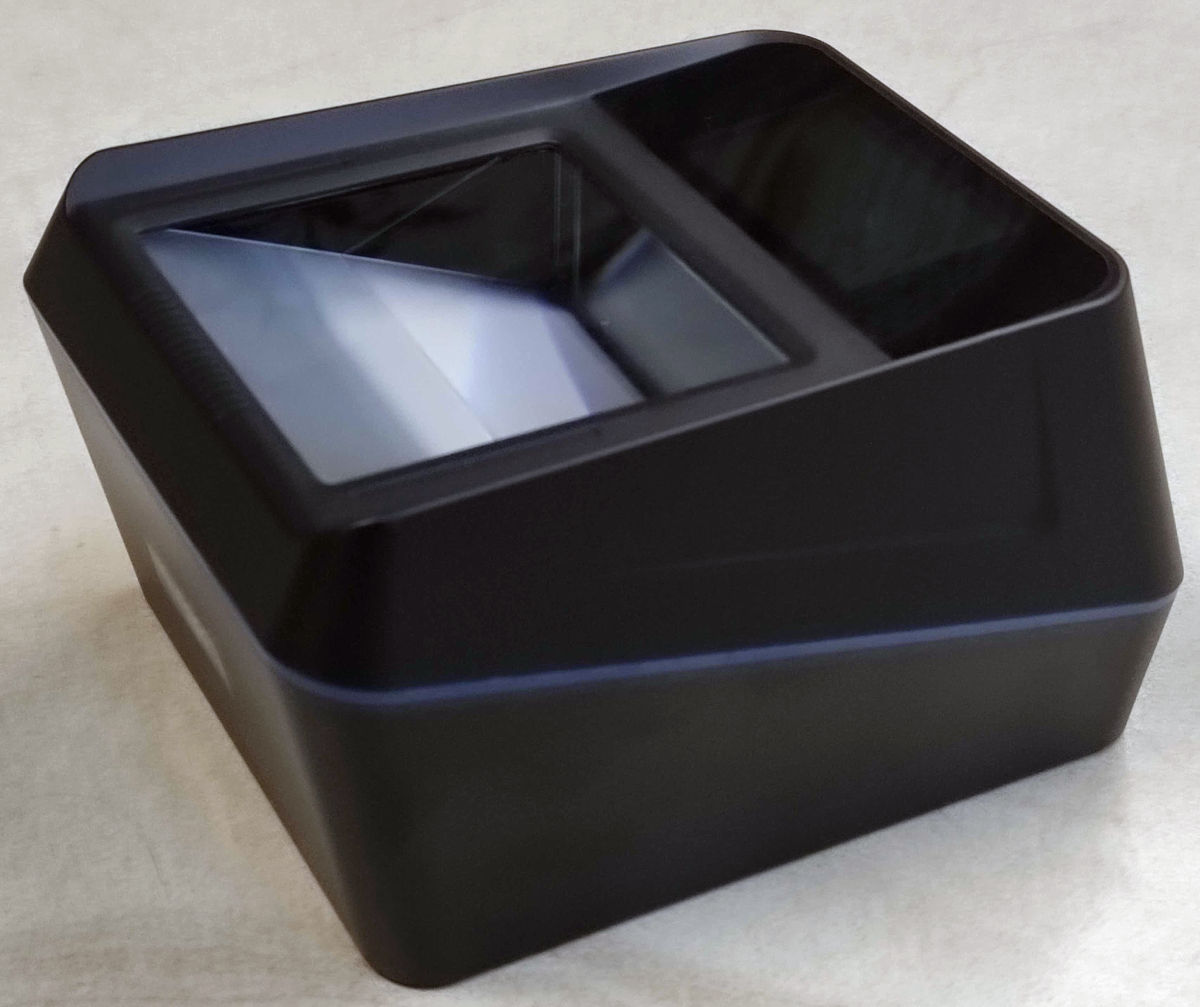

NASPS NSP303A is an optical fingerprint scanner for capturing ten prints using the 4-4-2 method.

The manufacturer specifies that the device has IP65-rated dust- and waterproof case. It also features an LCD screen and speaker to provide users with audio-visual feedback during scanning.

Support modules for this scanner are included in:


Device Name NASPS NSP303A FBI 4-4-2 Fingerprint Scanner
Manufacturer NASPS Technology & Innovation
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) Platen size: 84 x 86 mm (3.3" x 3.4")
Sensing Area: 81 x 77 mm (3.2" x 3.0")
Fingerprint image size 1600 x 1500 pixels (four-finger slap)
800 x 750 pixels (single fingers)
Sensor type Optical
Device size 177 x 143 x 96 mm (7.0" x 5.6" x 3.8")
Device weight 1.1 kg (2.4 lbs)
Operating temperature 10°C ~ +47°C (50°F ~ 117°F)
Operating humidity 10% - 92% (non-condencing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
