Mantra MARC10

General view

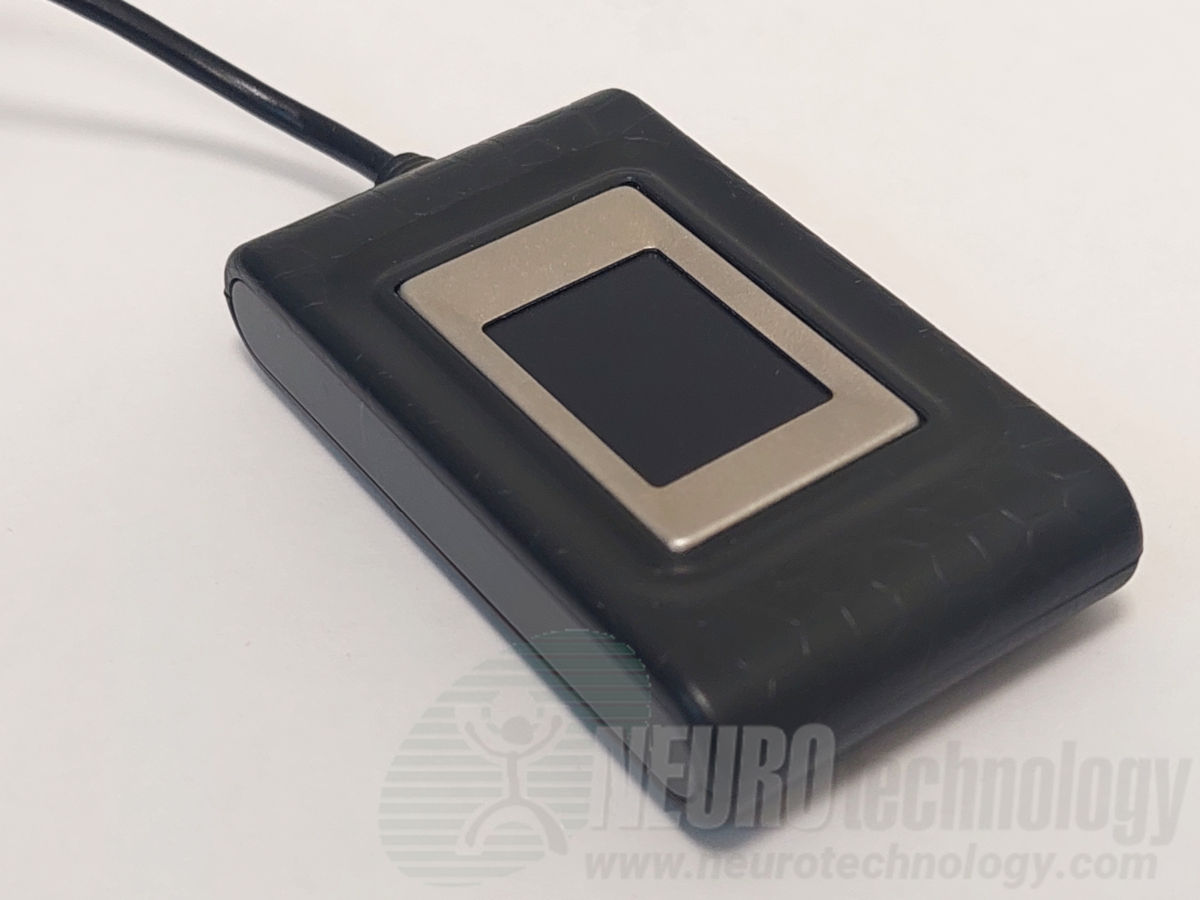

Mantra MARC10 fingerprint reader, general view
Click to zoom

The MARC10 is an FBI PIV and Mobile ID FAP10 certified fingerprint reader. The scanner is based on a rugged, advanced capacitive sensor, which allows the capturing of high-resolution fingerprint images.

The manufacturer specifies that the device is protected against water and dust with an IP54-rated casing and features a scratch-free sensor surface.

Support modules for this scanner are included in:

Specifications

Scanner Name MARC10
Manufacturer Mantra Softech (India) Pvt. Ltd.
Connection USB
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 13 x 18 mm (0.5" x 0.7")
Fingerprint image size 256 x 360 pixels
Sensor type Capacitive
Device size 58 x 33 x 12 mm (2.3" x 1.3" x 0.4")
Device weight 40 grams (1.4 oz)
Operating temperature -10°C ~ +70°C (+14°F ~ +158°F)
Operating humidity 0-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Mantra scanners

Neurotechnology SDKs also include support modules for these Mantra scanners:

  • MAPRO-CX – PIV and FAP10 certified single finger scanner with capacitive sensor and IP67 platen surface.
  • MELO31 – PIV-certified single finger scanner with optical sensor and IP65 casing.
  • MFS500 – PIV and FAP10 certified single finger scanner with optical sensor and IP54 casing.
  • MORPHS – FAP60 certified ten finger scanner with optical sensor and IP65 casing.
