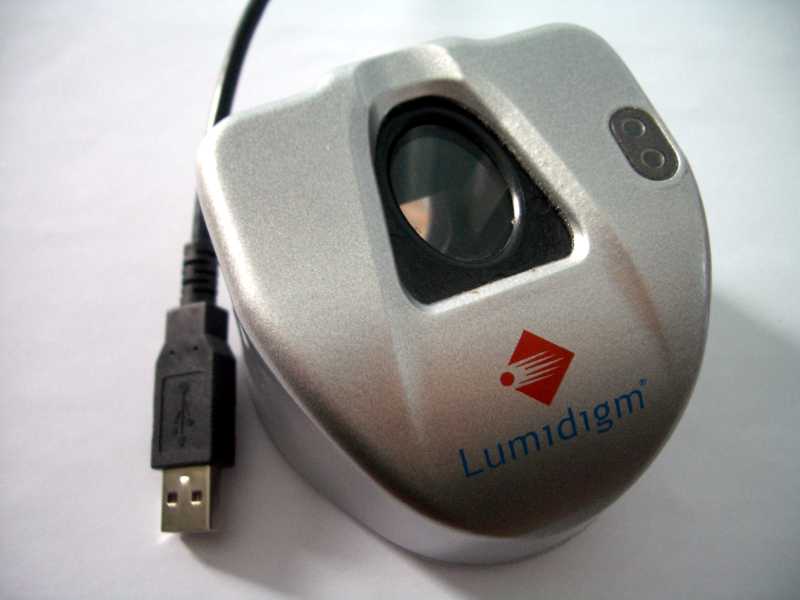

Lumidigm V-series (Venus) sensors
Click to zoom
V302 reader
Click to zoom

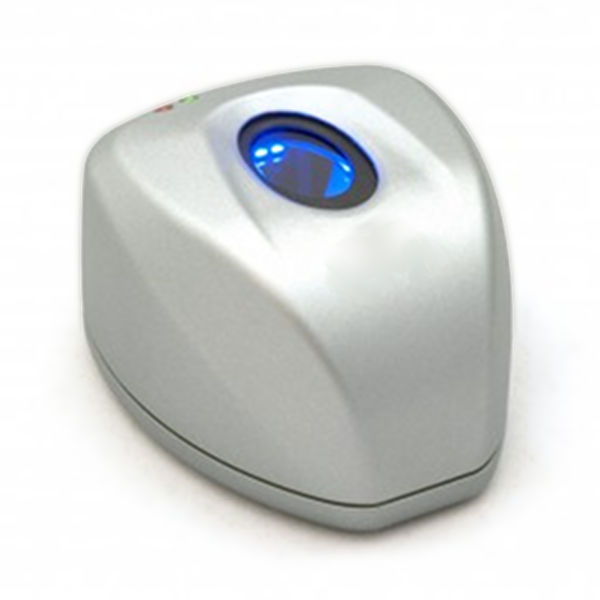

V311 reader
Click to zoom

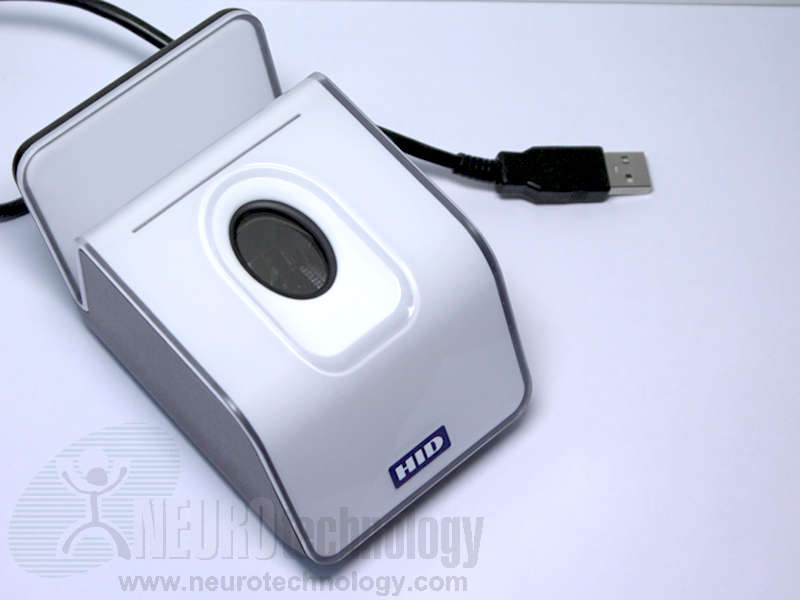

V371 reader
Click to zoom
Lumidigm V-Series fingerprint sensors include multispectral imaging technology that allows to capture fingerprint images when there are difficulties in distinguishing fingerprint features (dirty, aged, dry, wet, moist or incorrectly placed fingers). The manufacturer specifies that this technology allows to perform live finger detection to reject fake or spoof fingers.
The sensors may have USB 2.0 or RS-232 interfaces.
Support modules for this scanner are included in:
- MegaMatcher 13.1 SDK
- MegaMatcher On Card 13.1 SDK
- VeriFinger 13.1 SDK
- Free Fingerprint Verification SDK
Older models (i.e. V300-02-xx or V302-02-xx) are not supported in the newest versions of Neurotechnology SDKs.
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications

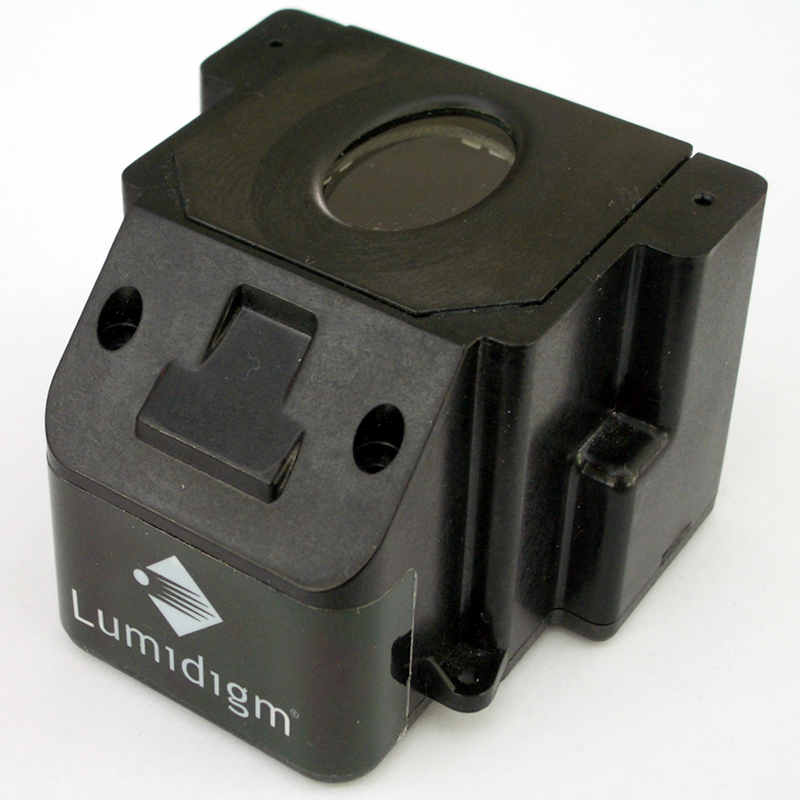

| V300 module | V302 reader | V311 reader | V371 reader | |
|---|---|---|---|---|
| Manufacturer | HID Global Corporation | |||
| Connection | USB 1.1/2.0 or RS-232 | USB 1.1/2.0 | USB 2.0 | USB 2.0 |
| Supported OS (*) | Microsoft Windows, Linux (x86-64) |
|||
| Resolution | 500 ppi | |||
| Image capture area (Platen size) | 18 x 28 mm (0.7" x 1.1") | |||
| Sensor type | Optical | |||
| Illumination | Multispectral | |||
| Contactless smart cards support | - | - | - | MIFARE Classic, DESFire EV1 |
| Contactless smart card operating frequency | - | - | - | 13.56 MHz |
| Contactless smart card interface speed | - | - | - | up to 848 kbps |
| Device size | 68 x 66 x 51 mm (2.7" x 2.6" x 2.2") |
83 x 102 x 60 mm (3.3" x 4.0" x 2.3") |
83 x 102 x 60 mm (3.3" x 4.0" x 2.3") |
79 x 124 x 63 mm (3.1" x 4.9" x 2.5") |
| Operating temperature |
-10°C ~ +50°C
(14°F ~ 122°F) A heater can be added for colder environments. |
0°C ~ +60°C
(32°F ~ 140°F) |
||
| Operating humidity | 10-95 % RH non-condensing | 0-100 % RH condensing | 0-100 % RH condensing | 10-95 % RH non-condensing |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Neurotechnology Solution Partners use this scanner in
Lumidigm V-Series sensors are used in these systems, created by Neurotechnology Solution Partners:
- Biostore – a generic biometric identification system created by Biostore Limited.
- Anaxee-Neurotech Attendance – an access and attendance control system developed by Anaxee Technologies Pvt. Ltd.
- RobotID – a generic biometric identification system created by Computer ID.
- TouchClock – an attendance control system created by Computer ID.
- TouchAccess – an access control system created by Computer ID.
Other Lumidigm scanners
Neurotechnology SDKs also include support modules for these Lumidigm scanners:
