DigitalPersona EikonTouch 710

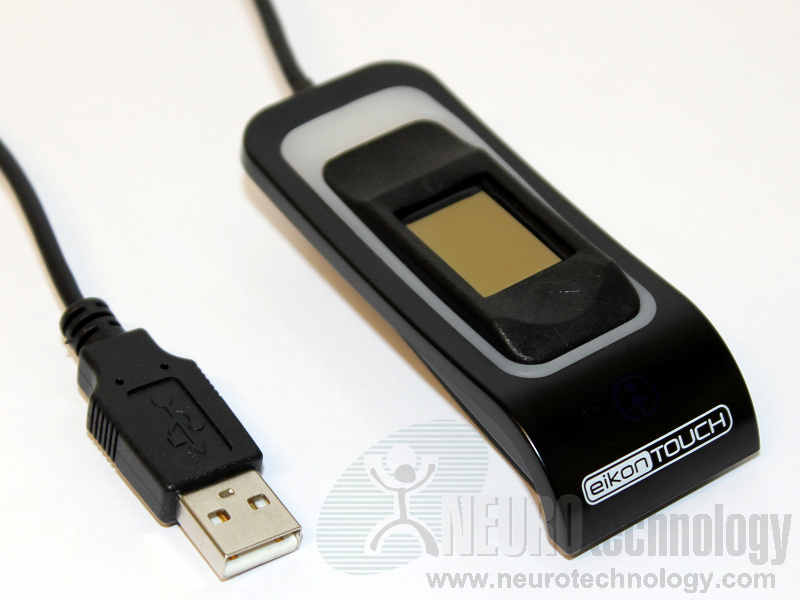

EikonTouch 710 from DigitalPersona is a capacitive fingerprint reader.
The manufacturer specifies that the reader is based on TCS1 fingerprint sensor, which has been certified as FIPS-201 / PIV compatible. Device case is specified as IP63 rugged.
Support modules for this scanner are included in:
- MegaMatcher 13.1 SDK
- MegaMatcher On Card 13.1 SDK
- VeriFinger 13.1 SDK
- Free Fingerprint Verification SDK
Find DigitalPersona EikonTouch 710 fingerprint reader
at Biometric Supply, a subsidiary of Neurotechnology.
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Scanner Name | EikonTouch 710 |
| Manufacturer | DigitalPersona, Inc. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows |
| Resolution | 508 ppi |
| Image capture area (Platen size) | 13 x 18 mm (0.5" x 0.7") |
| Fingerprint image size | 256 x 360 pixels |
| Sensor type | Capacitive |
| Device size | 84 x 34 x 14 mm (3.3" x 1.4" x 0.6") |
| Device weight | 74 grams (2.9 oz) |
| Operating temperature | 0°C ~ +40°C |
| Operating humidity | 5% - 93% at +30°C |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other DigitalPersona scanners
Neurotechnology SDKs also include support modules for these DigitalPersona scanners:
- U.are.U 5300 Reader and U.are.U 5300 Module
- U.are.U 5200 Module
- U.are.U 5100 Module and U.are.U 5160 Reader
- U.are.U 4500 Reader
