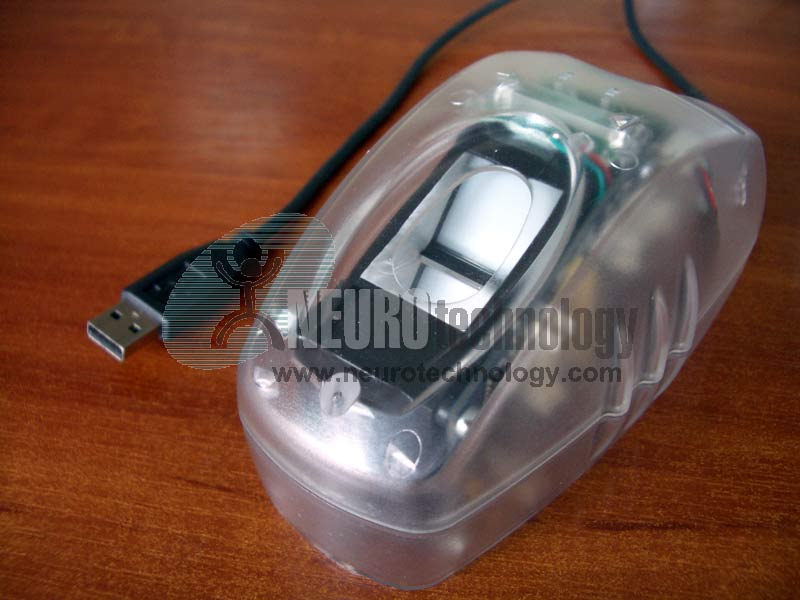

Biometrika Fx3000
Click to zoom

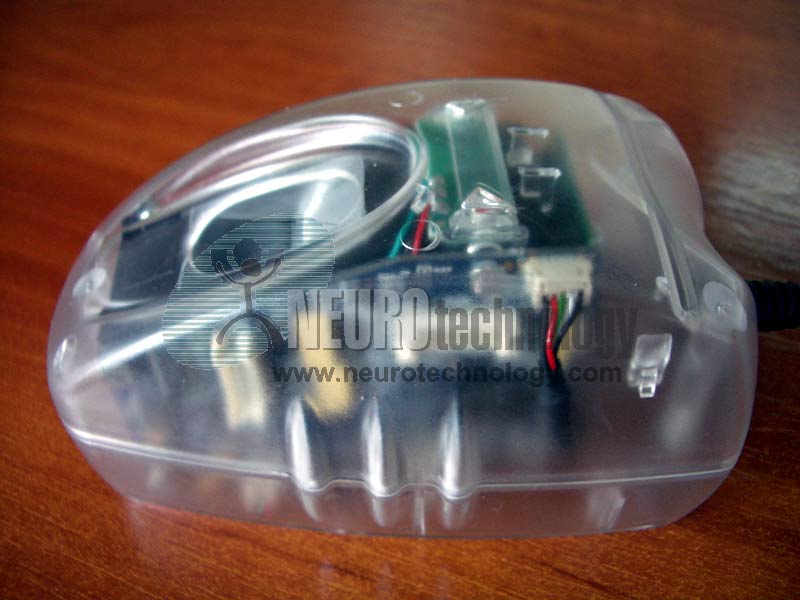

Side view
Click to zoom

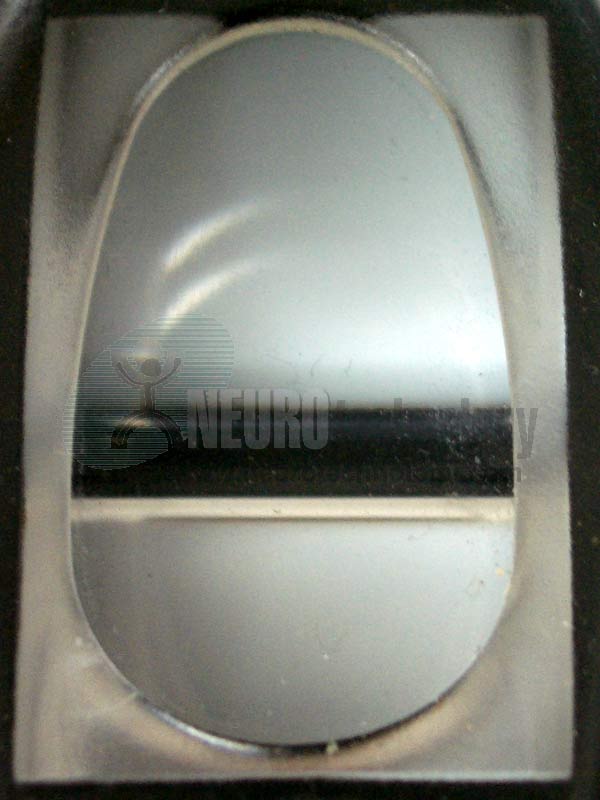

Close-up on sensor
Click to zoom

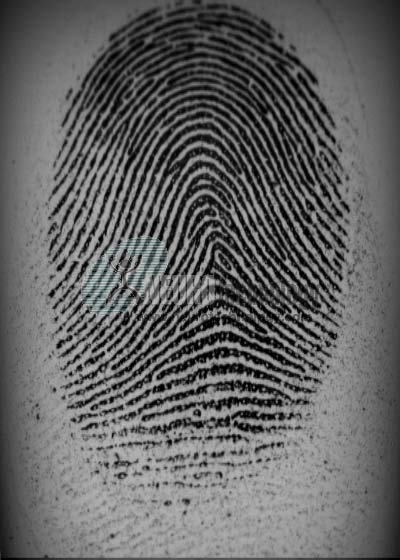

Raw fingerprint image
Click to zoom
Biometrika Fx3000 is an optical USB 2.0 desktop fingerprint scanner. It is mostly similar to the Fx2000 scanner, but has a wider sensor. A version of Fx3000 scanner with smart-card reader is also offered by scanners manufacturer.
Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.
Specifications
| Scanner Name | Fx3000 |
| Manufacturer | Biometrika srl |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows (32 bit only) |
| Resolution | 569 ppi |
| Image capture area (Platen size) | 18 x 25 mm (0.7" x 1.0") |
| Fingerprint image size | 400 x 560 pixels |
| Sensor type | Optical |
| Device size | 122 x 73 x 61 mm (4.8" x 2.9" x 2.4") |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Umpi Biometrika scanners
Neurotechnology SDKs also include support modules for these Umpi (Biometrika) devices:
