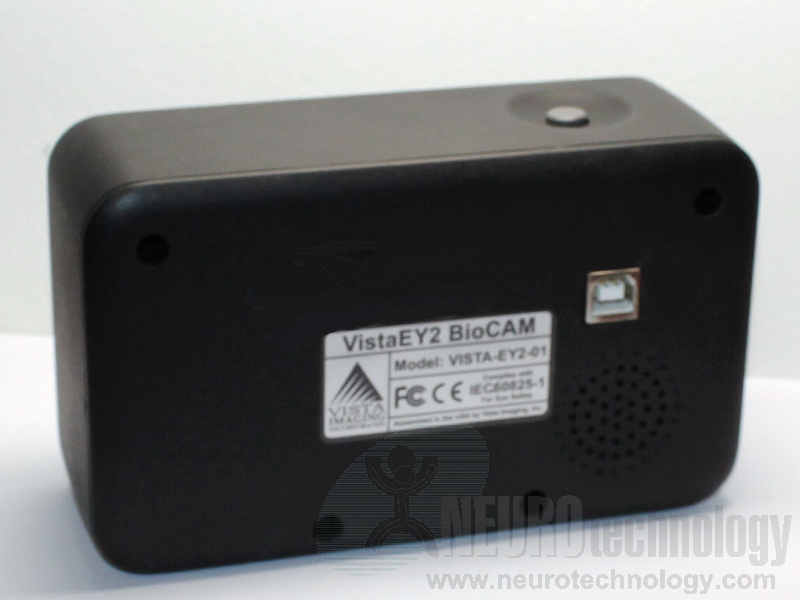

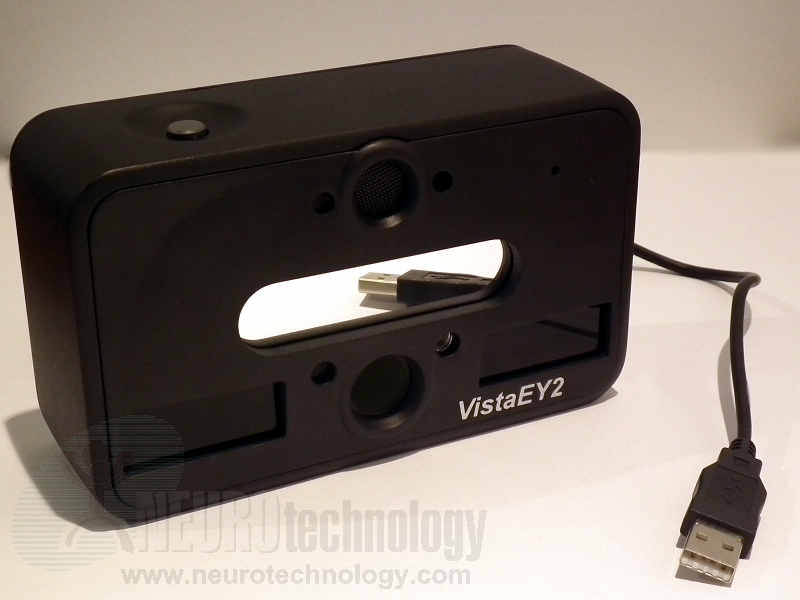

VistaEY2 Dual Iris & Face Camera
The VistaEY2 from Vista Imaging is a multimodal USB 2.0 biometric device that is able to capture dual iris images and face images. The device is also able to capture audio input.
Multi wavelength infra-red illumination, distance sensing technology, integrated mirror and LED are used to improve iris images capture. An integrated flash allows to capture faces in low-light environments. The device also includes integrated microphone and speaker that provide 16 KHz 16-bit audio I/O.
Device manufacturer specifies that captured iris images are ISO/IEC 19794-6 compliant and face images are ISO/IEC 19794-5 compliant.
Neurotechnology SDKs allow to use the device for iris, face and voice capture. Support modules for this scanner are included in:
- MegaMatcher 13.1 SDK – iris, face and voice capture.
- MegaMatcher On Card 13.1 SDK – iris and face capture.
- VeriEye 13.1 SDK – iris capture.
- VeriLook 13.1 SDK – face capture.
- VeriSpeak 13.1 SDK – voice capture.
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| General | |
|---|---|
| Device Name | VistaEY2 Dual Iris & Face Camera |
| Manufacturer | Vista Imaging, Inc. |
| Distributor | Corvus Integration, Inc |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows |
| Device size | 140 x 89 x 51 mm (5.5" x 3.5" x 2.0") |
| Device weight | 300 grams (10.5 oz) |
| Iris scanner | |
| Iris capture distance | 38 cm (15.0") |
| Iris image size (*) | 2 images, 640 x 480 pixels |
| Eye illumination | Multi wavelength infrared |
| Face capture camera | |
| CMOS sensor resolution | 3.2 Megapixel |
| Face image size | 2048 x 1536 pixels |
* This value is obtained when using Neurotechnology products. Device manufacturers may specify different value for this specification.
Other Vista Imaging devices
Neurotechnology SDKs also include support modules for:
- VistaEY2-02 – dual iris & face capture device with iris liveness detection.
- VistaEY2H – dual iris capture device with iris liveness detection.
- VistaEY2R – dual iris & face capture device with iris liveness detection and automatic tilt with face tracking.
- VistaFA2 – single iris & face capture device.
- VistaFA2E – single iris & face capture device, in full enclosure for advanced applications.
