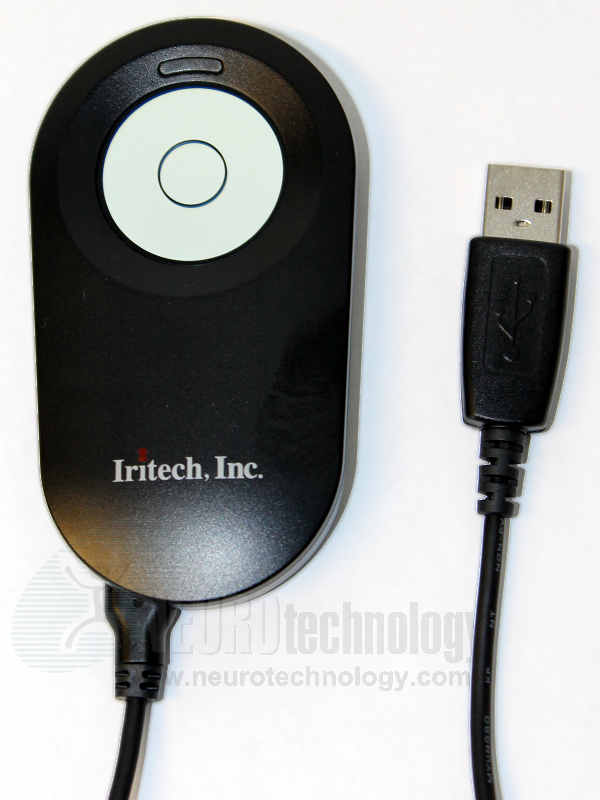

IriShield USB MK 2120U
The IriShield is a compact, monocular iris camera manufactured by Iritech.
The camera uses infrared LED for eye illumination and can be used both indoor and outdoor. The manufacturer specifies that the captured iris images are ISO/IEC 19794-6 compliant.
The camera is suitable for using in both desktop and mobile solutions, including usage with smartphones and tablets. An USB module without casing or chip & camera set are also available from the manufacturer.
Support modules for this device are included in these Neurotechnology products:
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Device Name | IriShield™ - USB MK 2120U |
| Manufacturer | Iritech, Inc. |
| Connection | USB 2.0 |
| Supported OS (*) |
Microsoft Windows Linux (x86-64) Android |
| Iris capture distance | 4.7 - 5.3 cm (1.9" - 2.1") |
| Iris image size | 640 x 480 pixels |
| Eye illumination | Infrared |
| Device size | 51 x 93 x 15 mm (2.0" x 3.7" x 0.6") |
| Device weight | 300 grams (10.5 oz) |
| Operating temperature | 0 °C .. +45 °C |
| Operating humidity | 0-90 % (non-condensing) |
* This value is obtained when using Neurotechnology products. Device manufacturers may specify different value for this specification.
Other Iritech devices
Neurotechnology SDKs also include support modules for:
- IriShield USB BK2121U – dual iris camera.
