UPEK TouchChip TCRU2C

General view

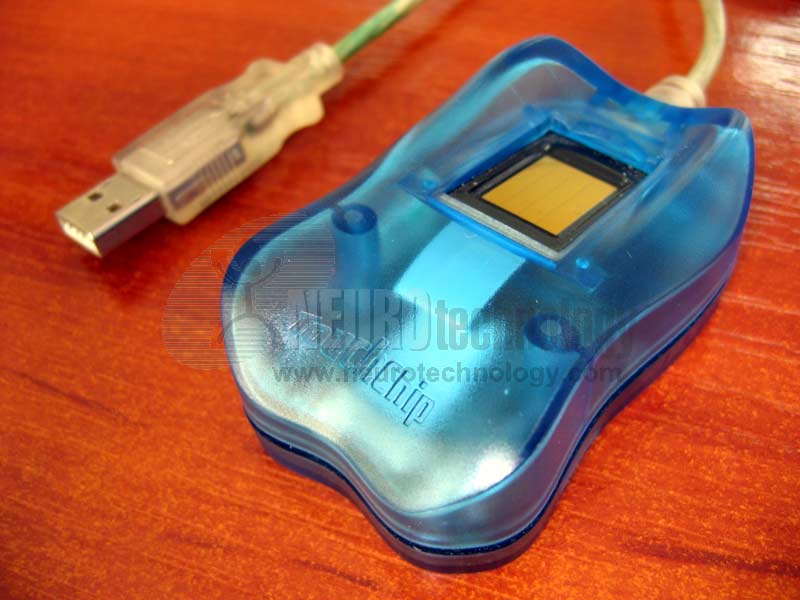

TouchChip TCRU2C fingerprint scanner, general view
Click to zoom


Close-up on sensor
Close-up on TouchChip TCRU2C fingerprint sensor
Click to zoom


TCRU1C and TCRU2C scanners side-by-side
TouchChip TCRU1C and TCRU2C fingerprint scanners side-by-side
Click to zoom

UPEK TouchChip TCRU2C is a capacitive USB 2.0 fingerprint scanner. The scanner is based on TouchChip Silicon Fingerprint Sensor that is used in notebooks, keyboards, handheld hardware, door locks, POS terminals and other applications.

Sensor's manufacturer specifies that TCRU2C protective coating ensures its robustness and long service time.

The scanner is no longer manufactured.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name UPEK TouchChip TCRU2C
Manufacturer UPEK, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Android (with root access)
Resolution 508 ppi
Image capture area (Platen size) 10 x 14 mm (0.4" x 0.6")
Fingerprint image size 208 x 288 pixels
Sensor type Capacitive, CMOS
Device size 44 x 69 x 23 mm (1.7" x 2.7" x 0.9")
Operating temperature 0°C ~ +40°C
Operating humidity 5% - 93% at +30°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other UPEK scanners

Neurotechnology SDKs include support module for these UPEK scanners:

  • EikonTouch 300 – a flat fingerprint reader with capacitive TCS2S touch sensor and rugged coating.
  • EikonTouch 500 – a flat fingerprint reader with capacitive TCS1S touch sensor and rugged coating.
  • EikonTouch 700 – a FIPS 201 / PIV compliant flat fingerprint reader with capacitive TCS1C touch sensor.
  • Eikon – a desktop fingerprint reader, based on TCS4C capacitive swipe sensor.
  • Eikon Solo – a desktop fingerprint reader, based on TCS5B capacitive swipe sensor.
  • Eikon To Go – a fingerprint reader in dongle form factor, based on TCS4C capacitive swipe sensor.
