UPEK EikonTouch 500

General view

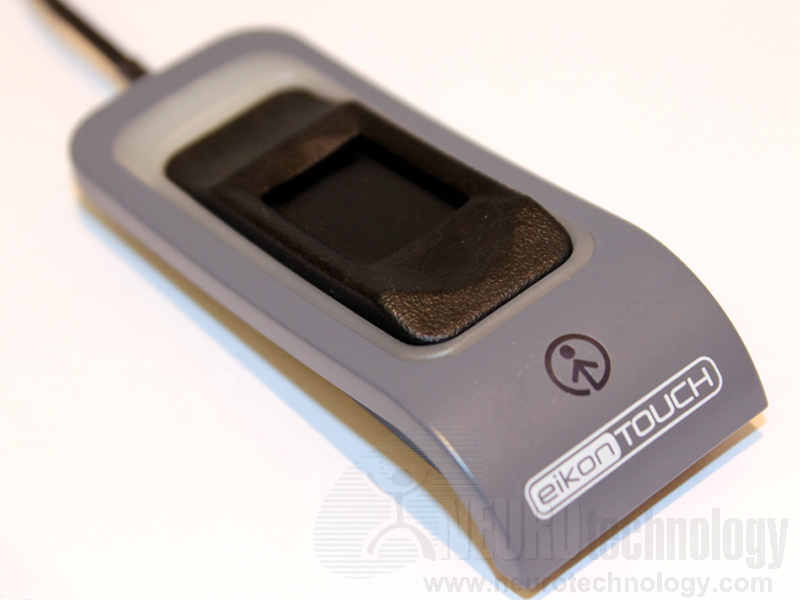

UPEK EikonTouch 500 fingerprint scanner, general view
Click to zoom

UPEK EikonTouch 500 is a capacitive fingerprint reader with ruggedized sensor coating.

The scanner is no longer manufactured.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

Scanner Name EikonTouch 500
Manufacturer DigitalPersona, Inc.
Previously by UPEK, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Android (with root access)
Resolution 508 ppi
Image capture area (Platen size) 13 x 18 mm (0.5" x 0.7")
Fingerprint image size 256 x 360 pixels
Sensor type Capacitive
Device size 84 x 34 x 14 mm (3.3" x 1.4" x 0.6")
Device weight 80 grams (2.8 oz)
Operating temperature 0°C ~ +40°C
Operating humidity 5% - 93% at +30°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other UPEK scanners

Neurotechnology SDKs include support module for these UPEK scanners:

  • EikonTouch 300 – a flat fingerprint reader with capacitive TCS2S touch sensor and rugged coating.
  • EikonTouch 700 – a FIPS 201 / PIV compliant flat fingerprint reader with capacitive TCS1C touch sensor.
  • Eikon – a desktop fingerprint reader, based on TCS4C capacitive swipe sensor.
  • Eikon Solo – a desktop fingerprint reader, based on TCS5B capacitive swipe sensor.
  • Eikon To Go – a fingerprint reader in dongle form factor, based on TCS4C capacitive swipe sensor.
