UPEK Eikon To Go

General view

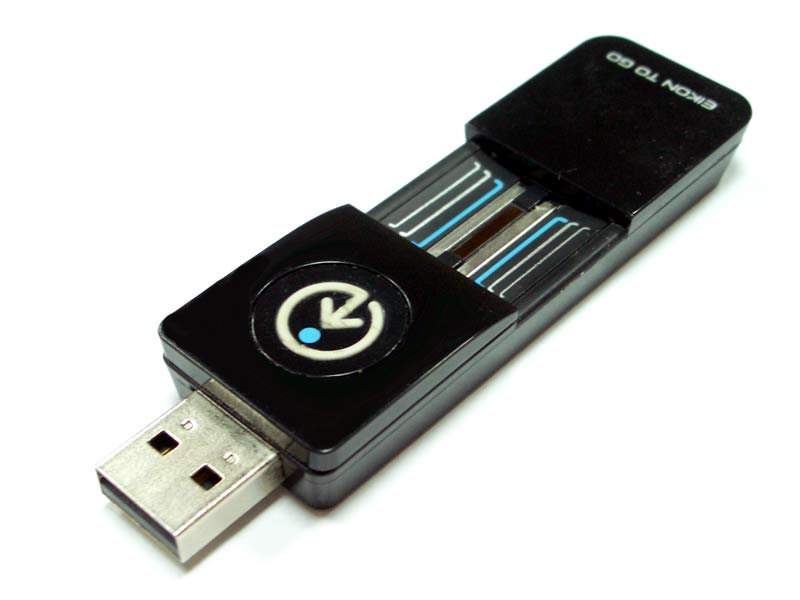

Eikon To Go fingerprint scanner, general view
Click to zoom

UPEK Eikon To Go is a swipe fingerprint reader in dongle form factor with capacitive sensor. The reader is more suitable for notebooks and other mobile hardware due to its small size.

The scanner is no longer manufactured.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name UPEK Eikon To Go
Manufacturer UPEK, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Mac OS X (x86 32-bit and 64-bit),
Android (with root access)
Resolution 508 ppi
Image capture area (Platen size) 25 x 10 mm (1.0" x 0.4")
Fingerprint image width 192 pixels
Sensor type Capacitive, CMOS
Device size (unfolded) 82 x 24 x 5 mm (3.2" x 0.9" x 0.2")
Device weight 14 g (0.5 oz)
Operating temperature 0°C ~ +40°C
Operating humidity 5% - 93% at +30°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other UPEK scanners

Neurotechnology SDKs include support module for these UPEK scanners:

  • EikonTouch 300 – a flat fingerprint reader with capacitive TCS2S touch sensor and rugged coating.
  • EikonTouch 500 – a flat fingerprint reader with capacitive TCS1S touch sensor and rugged coating.
  • EikonTouch 700 – a FIPS 201 / PIV compliant flat fingerprint reader with capacitive TCS1C touch sensor.
  • Eikon – a desktop fingerprint reader, based on TCS4C capacitive swipe sensor.
  • Eikon Solo – a desktop fingerprint reader, based on TCS5B capacitive swipe sensor.
