UPEK Eikon Solo

General view
Eikon Solo fingerprint reader, general view
Click to zoom

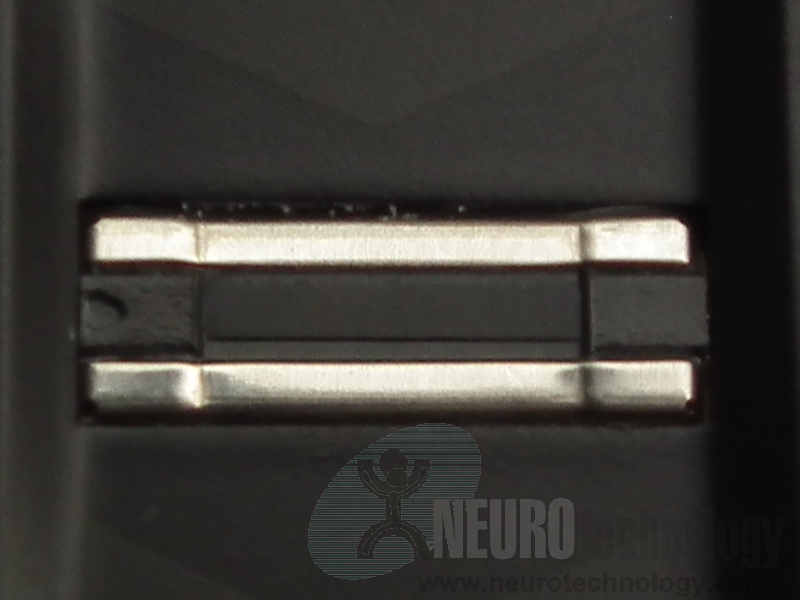

Sensor close-up
Close-up view on UPEK Eikon Solo TCS5B fingerprint sensor
Click to zoom

UPEK Eikon Solo is a swipe fingerprint reader with USB 2.0 connection. The fingerprint reader is based on TCS5B capacitive fingerprint sensor.

The scanner is no longer manufactured.

Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

Specifications

Scanner Name UPEK Eikon Solo
Manufacturer DigitalPersona, Inc.
Previously by UPEK, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Mac OS X (x86 32-bit and 64-bit),
Android (with root access)
Resolution 508 ppi
Image capture area (Platen size) 25 x 7 mm (1.0" x 0.3")
Fingerprint image width 144 pixels
Sensor type Capacitive, CMOS
Device size 84 x 34 x 14 mm (3.3" x 1.4" x 0.6")
Device weight 68 g (2.4 oz)
Operating temperature 0°C ~ +40°C
Operating humidity 5% - 93% at +30°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other UPEK scanners

Neurotechnology SDKs include support module for these UPEK scanners:

  • EikonTouch 300 – a flat fingerprint reader with capacitive TCS2S touch sensor and rugged coating.
  • EikonTouch 500 – a flat fingerprint reader with capacitive TCS1S touch sensor and rugged coating.
  • EikonTouch 700 – a FIPS 201 / PIV compliant flat fingerprint reader with capacitive TCS1C touch sensor.
  • Eikon – a desktop fingerprint reader, based on TCS4C capacitive swipe sensor.
  • Eikon To Go – a fingerprint reader in dongle form factor, based on TCS4C capacitive swipe sensor.
