Watson

General view

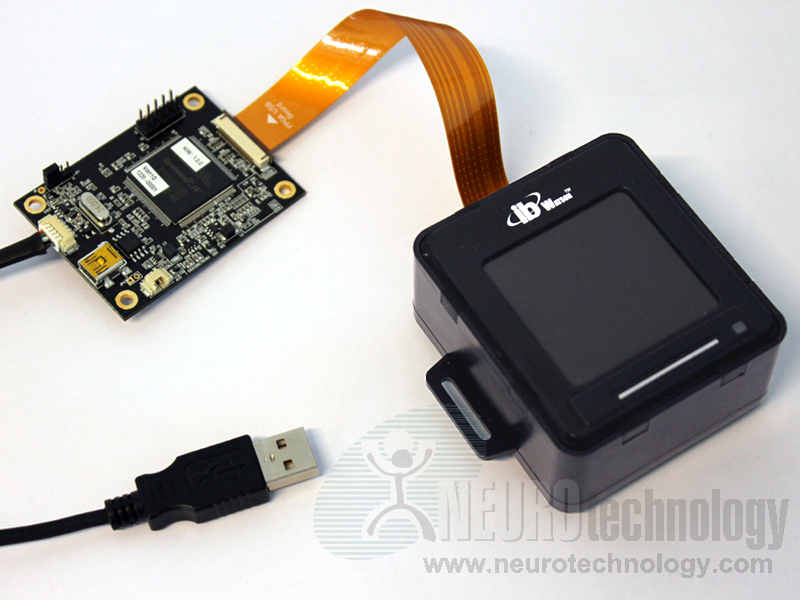

Integrated Biometrics Watson fingerprint reader, general view
Click to zoom

The Watson from Integrated Biometrics is a PIV-071006 and Appendix F Mobile ID FAP 45 certified fingerprint sensor that is able to capture two flat fingerprints simultaneously, or rolled fingerprints.

The sensor is based on company's proprietary Light Emitting Sensor (LES) technology which uses hybrid capacitive/optical capture method. The manufacturer specifies that the sensor has IP67 rugged package.

Support module for this sensor is included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

Scanner Name Watson Two-Finger Roll Scanner
Manufacturer Integrated Biometrics
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Android.
Resolution 500 ppi
Image capture area (Platen size) 41 x 38 mm (1.6" x 1.5")
Image size 800 x 750 pixels
Sensor type Hybrid (optical and capacitive)
Sensor size 70 x 63 x 33 mm (2.8" x 2.5" x 1.3")
Operating temperature -10°C ~ +50°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Integrated Biometrics devices

Neurotechnology SDKs also include support module for these fingerprint capture devices from Integrated Biometrics:
