Sherlock

General view

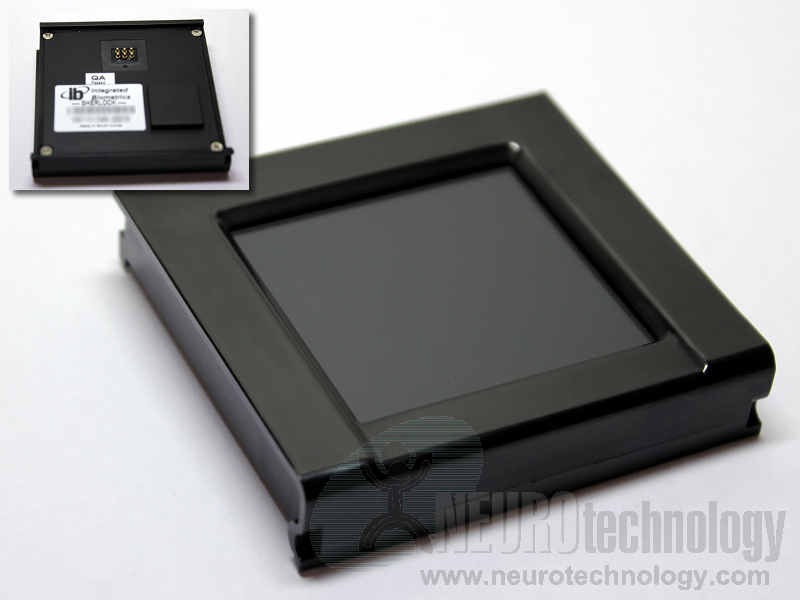

Integrated Biometrics Sherlock fingerprint reader, general view
Click to zoom

Integrated Biometrics Sherlock is a compact fingerprint reader designed for stand-alone or embedded module usage. The reader has PIV-071006 and Appendix F Mobile ID FAP 45 certification from the FBI. Sherlock allows to capture single or dual flat fingerprints, or single rolled fingerprints.

The sensor is based on company's proprietary Light Emitting Sensor (LES) technology which uses hybrid capacitive/optical capture method. The manufacturer specifies that the sensor has IP65 rugged package and offers optional IP67 package.

Support module for this sensor is included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

Specifications

Scanner Name Sherlock Two-Finger Roll Scanner
Manufacturer Integrated Biometrics
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Android.
Resolution 500 ppi
Image capture area (Platen size) 41 x 38 mm (1.6" x 1.5")
Image size 800 x 750 pixels
Sensor type Hybrid (optical and capacitive)
Sensor size 65 x 62 x 14 mm (2.6" x 2.4" x 0.6")
Sensor weight 60 grams (2.1 oz)
Operating temperature -20°C ~ +60°C
Operating humidity 30 - 85 % non-condensing

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Integrated Biometrics devices

Neurotechnology SDKs also include support module for these fingerprint capture devices from Integrated Biometrics:
