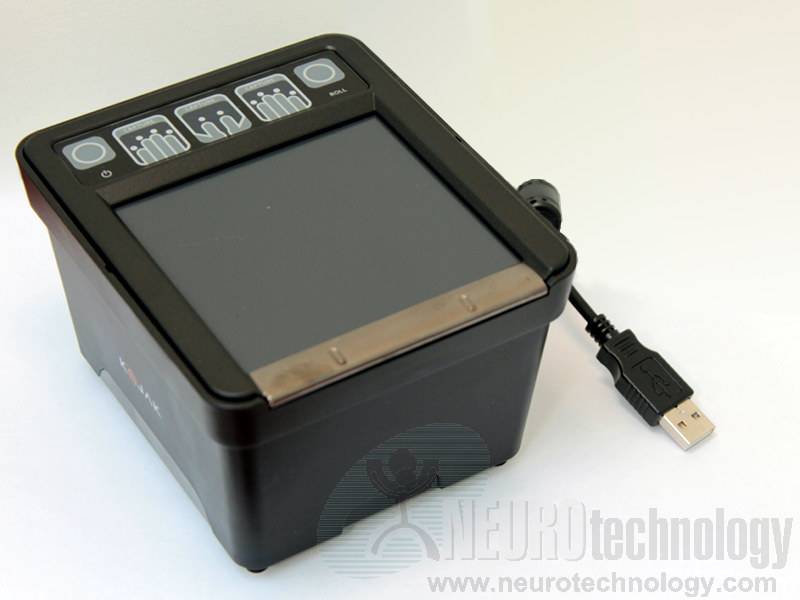

Integrated Biometrics Kojak is an FBI Appendix F FAP 60 certified fingerprint reader. The scanner is able to capture up to four flat fingerprints simultaneously, as well as single rolled fingerprints.
The sensor is based on company's proprietary Light Emitting Sensor (LES) technology which uses hybrid capacitive/optical capture method. The manufacturer specifies that the sensor has IP65 rugged bezel.
Support module for this sensor is included in:
|Scanner Name||Kojak FBI Appendix F Certified FAP 60 10-Print Roll Scanner|
|Supported OS (*)||Microsoft Windows (32-bit and 64-bit),
|Image capture area (Platen size)||
89 x 80 mm (3.5" x 3.1") - platen size
82 x 76 mm (3.2" x 3.0") - sensing area
|Image size||1600 x 1500 pixels|
|Sensor type||Hybrid (optical and capacitive)|
|Device size||114 x 132 x 84 mm (4.5" x 5.2" x 3.3")|
|Device weight||725 grams (1.6 lbs) without cable|
|Operating temperature||-10°C ~ +55°C|
|Operating humidity||30 - 85 % (non-condensing)|
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
