Five-0

General view

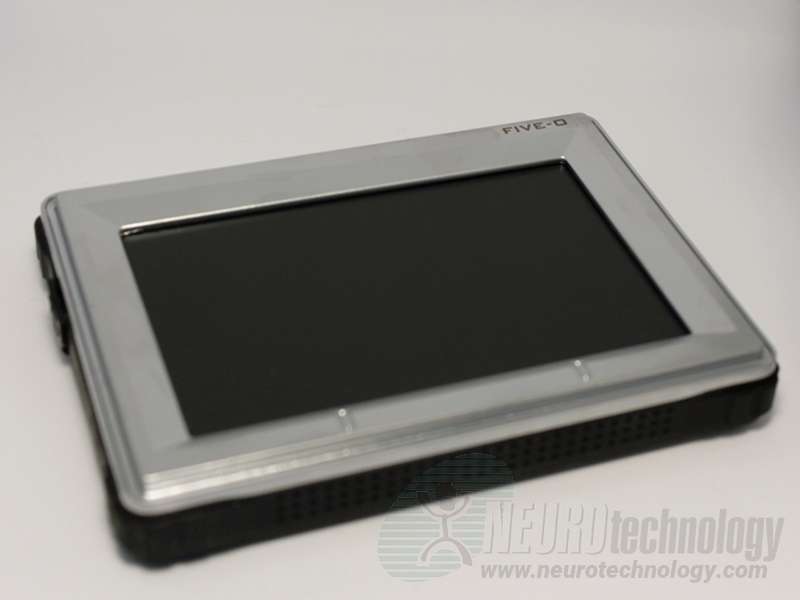

Integrated Biometrics Five-0 fingerprint reader, general view
Click to zoom

Integrated Biometrics Five-0 is an FBI Appendix F FAP 50 and FIPS201/PIV certified fingerprint reader. The ultra-compact scanner is able to capture up to four flat fingerprints simultaneously, as well as rolled fingerprints.

The sensor is based on company's proprietary Light Emitting Sensor (LES) technology which uses a patented capture method. The manufacturer specifies that the sensor has IP65 Ingress protection.

Support module for this sensor is included in:

Specifications

Scanner Name Five-0 FBI Appendix F Certified FAP 50 10-Print Scanner
Manufacturer Integrated Biometrics
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Android.
Resolution 500 ppi
Image capture area (Platen size) 86 x 54 mm (3.4" x 2.1") - platen size
82 x 51 mm (3.2" x 2.0") - sensing area
Image size 1600 x 1000 pixels
Sensor type LES (patented technology)
Device size 114 x 83 x 19 mm (4.5" x 3.3" x 0.8")
Device weight 192 grams (6.8 oz) without cable
Operating temperature -10°C ~ +55°C
Operating humidity 30 - 85 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Integrated Biometrics devices

Neurotechnology SDKs also include support module for these fingerprint capture devices from Integrated Biometrics:
