NITGEN eNBioScan-F

General view

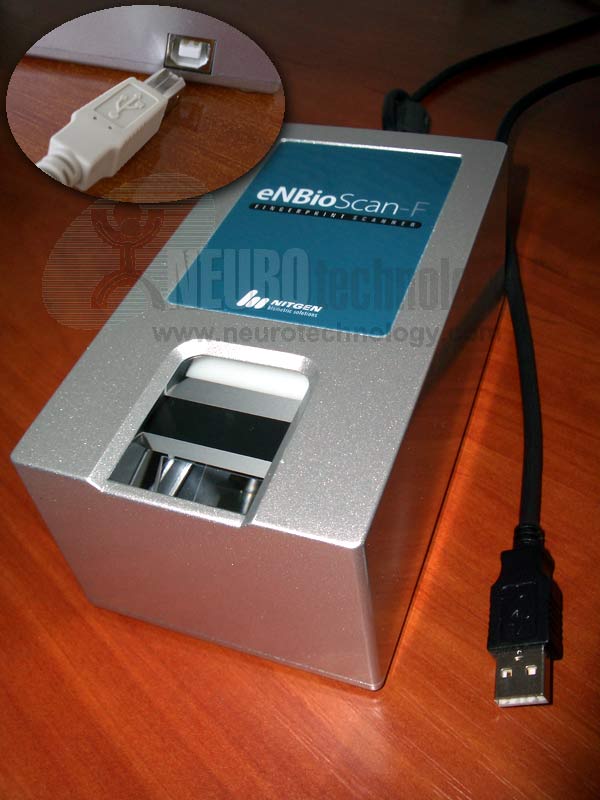

NITGEN eNBioScanF fingerprint scanner, general view
Click to zoom


Close-up on sensor

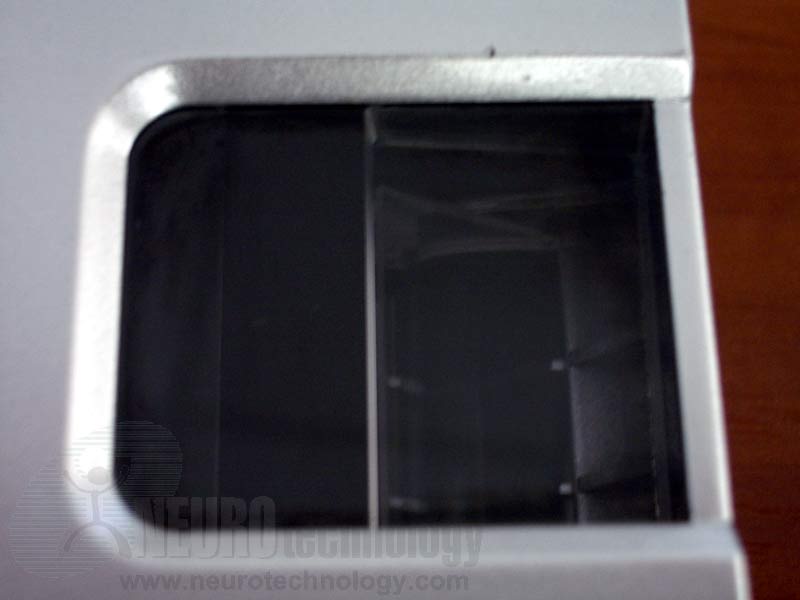

Close-up on NITGEN eNBioScanF fingerprint sensor
Click to zoom

The eNBioScan-F is an optical USB 2.0 fingerprint scanner with large 1.2" x 1.2" (31 x 31 mm) fingerprint sensor. The scanner is able to scan wet fingers.

eNBioScan-F scanner meets FBI's Integrated AFIS Image Quality Specifications (FBI IQS). That means that an image from the scanner complies FBI's requirements for image resolution, geometrical distortions, sharpness and noise level.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name NITGEN eNBioScan-F
Manufacturer NITGEN Co., Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit), Linux (32bit)
Resolution 500 ppi
Image capture area (Platen size) 30.5 x 30.5 mm (1.2" x 1.2")
Fingerprint image size 600 x 600 pixels
Sensor type Optical
Device size 63 x 146 x 81 mm (2.5" x 5.7" x 3.2")
Device weight 380 grams (0.8 lbs)
Operating temperature +20°C ~ +60°C
Operating humidity 0-95 %

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other NITGEN scanners

Neurotechnology SDKs also include support modules for these NITGEN scanners:
