NITGEN eNBioScan-C1

General view

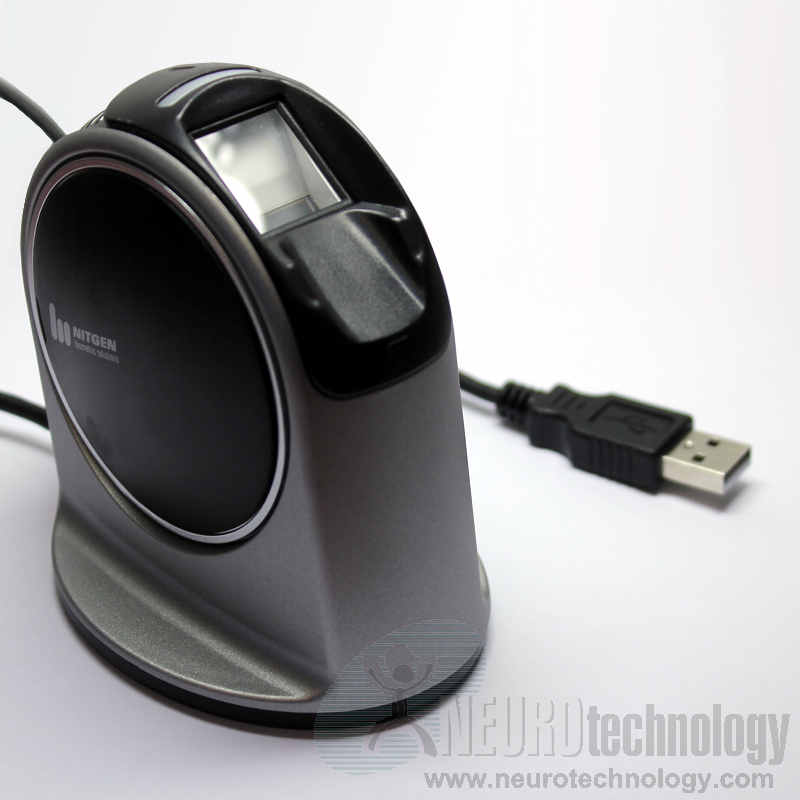

NITGEN eNBioScan-C1 fingerprint scanner, general view
Click to zoom

NITGEN eNBioScan-C1 is an optical single fingerprint reader. The device is based on PIV-certified FDU08 fingerprint scanning module.

The manufacturer specifies that device's sensor is resistant to scratches, impact, vibration and electrostatic shock. The scanner is able to capture problematic fingerprints (wet or dry fingers etc).

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

Scanner Name eNBioScan-C1 (HFDU08)
Manufacturer NITGEN Co., Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 16 x 18 mm (0.6" x 0.7")
Fingerprint image size 260 x 330 pixels
Sensor type Optical
Device size 39 x 89 x 89 mm (1.5" x 3.5" x 3.5")
Operating temperature -20°C ~ +60°C
Operating humidity 0-90 %

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
