NITGEN eNBioScan-D plus

General view

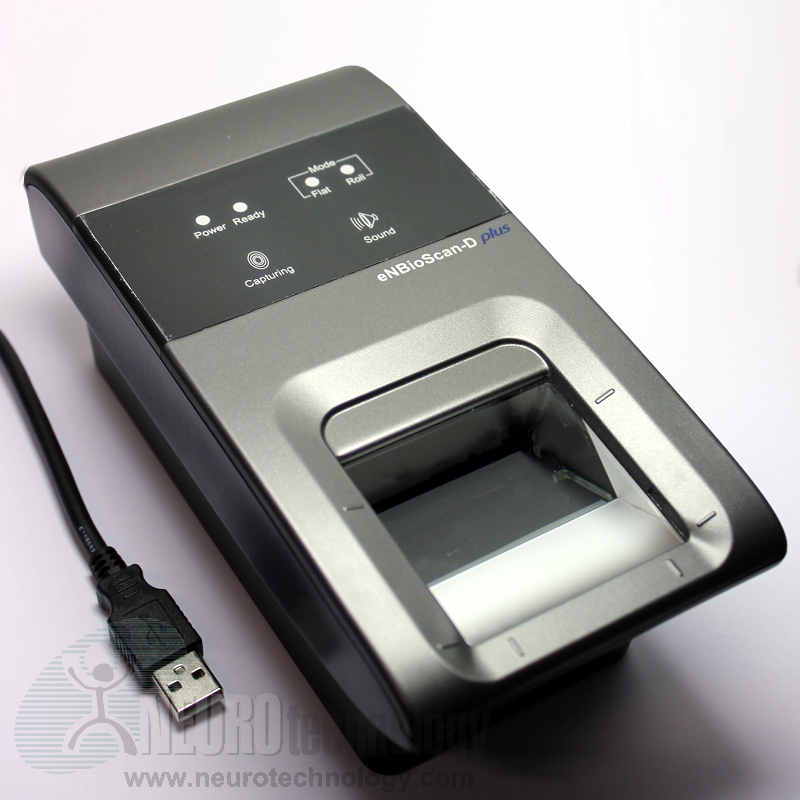

NITGEN eNBioScan-D plus fingerprint scanner, general view
Click to zoom

The eNBioScan-D plus from NITGEN is an optical dual fingerprint scanner. The scanner is able to capture dual or single flat fingerprints, as well as single rolled fingerprints.

The device is Appendix F Mobile ID FAP 45 certified.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

Scanner Name eNBioScan-D plus
Manufacturer NITGEN Co., Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 48 x 48 mm (1.9" x 1.9")
Fingerprint image size 952 x 952 pixels (flat / slap)
800 x 750 pixels (rolled)
Sensor type Optical
Device size 73 x 180 x 93 mm (2.9" x 7.1" x 3.7")
Operating temperature -20°C ~ +60°C
Operating humidity 0-90 %

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
