Suprema RealScan-F

General view

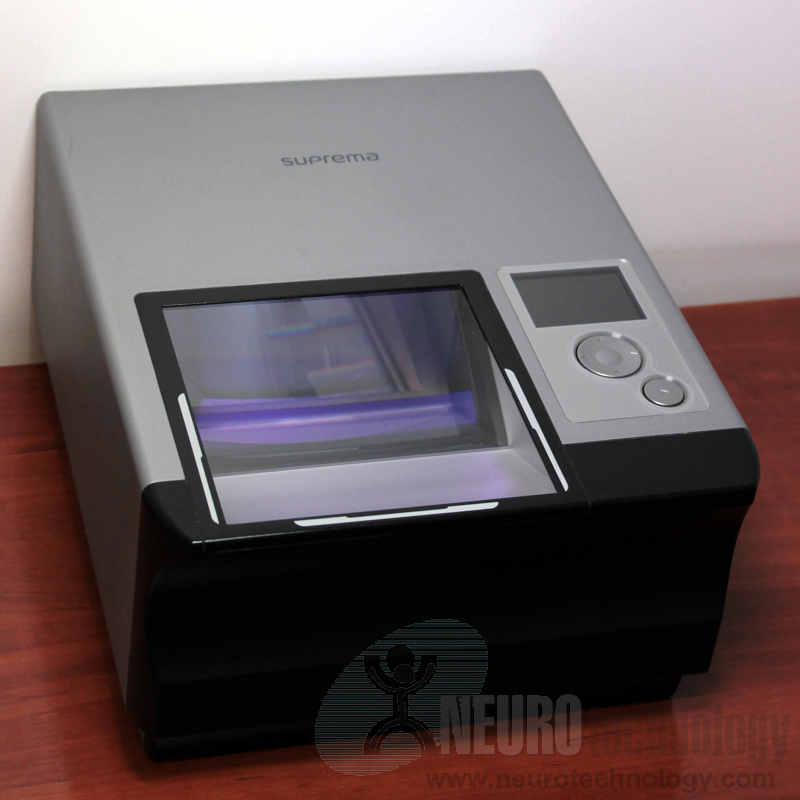

Suprema RealScan-F palm print scanner, general view
Click to zoom

Suprema RealScan-F is an optical palm print scanner which is certified by the FBI as Appendix F compatible. The scanner is able to capture these types of palm prints and fingerprints:

  • Lower palm
  • Writer's palm
  • Four-finger slap
  • Dual flat fingerprints (dual thumbs)
  • Single flat fingerprint
  • Single rolled fingerprint

Scanner's manufacturer specifies that the scanner provides high quality images regardless of fingers or palm physical conditions. The rolled fingerprint capture is backed by Suprema's Advanced Rolled Image Construction technology which is able to detect slips and construct rolled fingerprint images.

The scanner has splash proof casing.

An LCD display is embedded into the scanner for providing feedback to users.

Support modules for this scanner are included in:

Specifications

Scanner Name RealScan-F Palm-Print Enrollment Scanner
Manufacturer Suprema, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Resolution 500 ppi
Image capture area 130 x 130 mm (5.1" x 5.1")
Palm print image size 2550 x 2550 pixels
Fingerprint image size 2550 x 2550 pixels (for 4 finger slaps)
800 x 750 pixels (for a rolled finger)
Sensor type Optical
Device size 253 x 313 x 148 mm (10.0" x 12.3" x 5.8")
Device weight 6.0 kg (13.2 lbs)
Operating temperature 0°C ~ +50°C
Operating humidity 10% - 90% (non-condencing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Suprema scanners

Neurotechnology SDKs also include support modules for these Suprema scanners:
