SecuGen Hamster Pro Duo SC/PIV

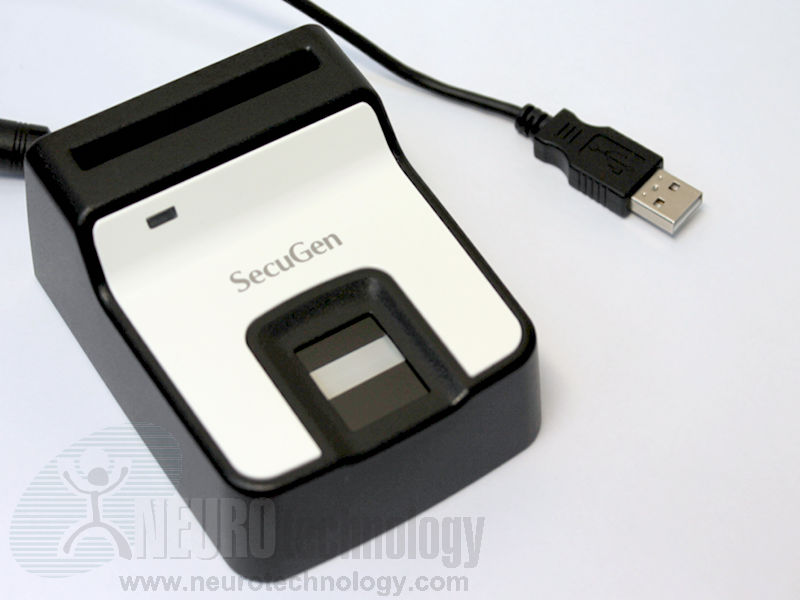

General view
Hamster Pro Duo SC/PIV
Click to zoom

SecuGen Hamster Pro Duo SC/PIV combines optical fingerprint scanner and ISO 7816 smart card reader in one device.

The fingerprint sensor is FBI FIPS 201 / PIV and Mobile ID FAP 20 compliant.

The manufacturer specifies that fingerprint scanner is based on a rugged sensor, which is also resistant to scratches, impacts and electrostatic shock. Also specified that the scanner rejects latent fingerprints and 2-D spoof fingerprint images (i.e. photocopies), as well as captures problematic fingerprints like dry, moist, aged or scarred.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

General
Scanner Name SecuGen Hamster Pro Duo SC/PIV
Manufacturer SecuGen Corporation
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Android
Device size 80 x 100 x 46 mm (3.1" x 3.9" x 1.8")
Device weight 186 grams (6.6 oz)
Operating temperature 0°C ~ +50°C
Operating humidity 10-90 %
Fingerprint reader
Resolution 500 ppi
Image capture area (Platen size) 18 x 23 mm (0.7" x 0.9")
Fingerprint image size 300 x 400 pixels
Sensor type Optical
Illumination LED
Smart card reader
Standard compliancy ISO 7816, EMV Level 1, PC/SC, CCID,
Supported protocols T=0, T=1, Memory Card
Interface speed 9.6 - 600 kbps
Supported card clock frequency 4.80 MHz
Accepted card voltage 1.8V, 3V, 5V
Supported card types ISO 7816 Class A, B, C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
